| GENERAL |
| Phase | Single Phase |
| Form Factor | Tower |
| UPS Topology | Line-interactive |
| INPUT |
| Generator Compatibility | Yes |
| Nominal Input Voltage ( Vac ) | 230 ± 10% |
| Input Voltage Range ( Vac ) | 165 ~ 290 |
| Input Frequency ( Hz ) | 50 ± 10 / 60 ± 10 |
| Input Frequency Detection | Auto-sensing |
| Rated Input Current ( A ) | 10 |
| Input Connector Type | IN/ZA |
| Power Cord Length (ft.) | 4 |
| Power Cord Length (m.) | 1.2 |
| OUTPUT |
| Capacity (VA) | 2200 |
| Capacity (Watts) | 1320 |
| Battery Waveform | Simulated Sine Wave |
| On Battery Voltage(s) ( Vac ) | 230 ± 10% |
| On Battery Frequency ( Hz ) | 60 ± 1% / 50 ± 1% |
| Automatic Voltage Regulation (AVR) | Single Boost, Single Buck |
| Overload Protection | Circuit Breaker |

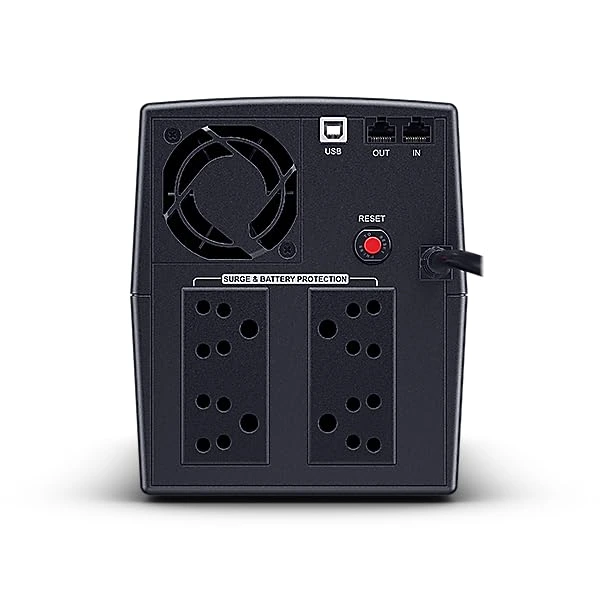

| Outlet(s) – Total | 4 |
| Outlet Type | IN/ZA x 4 |
| Outlet(s) – Battery & Surge Protected | 4 |
| Typical Transfer Time ( ms ) | 4 |
| BATTERY |
| Runtime at 60W ( min ) | 95 |
| Runtime at 90W ( min ) | 70 |
| Typical Recharge Time ( Hours ) | 8 |
| Start On Battery | Yes |
| User-replaceable | No |
| Battery Type | Sealed Lead-acid |
| SURGE PROTECTION & FILTERING |
| Surge Suppression ( Joules ) | 125 |
| EMI/RFI Filtration | Yes |
| Phone/Network Protection RJ11/RJ45 (Combo) | 1-in, 1-out |
| MANAGEMENT & COMMUNICATIONS |
| LED Indicators | Power On, Line Mode, Battery Mode, Battery Capacity, Low Battery |
| HID Compliant USB Port(s) | 1 |
| Audible Alarms | Battery Mode, Low Battery, Overload, UPS Fault |
| Management Cable ( pcs ) | USB Cable x1 |
| Power Management Software | PowerPanel® Personal (Recommended) |
| PHYSICAL |
| Enclosure Construction | Plastic |
| Color | Black |
| PHYSICAL SIZE – UPS MODULE |
| Dimensions (WxHxD) (in.) | 5.83 x 7.01 x 11.73 |
| Dimensions (WxHxD) (mm.) | 148 x 178 x 298 |
| Weight (lbs.) | 23.81 |
| Weight (kg.) | 10.8 |
| ENVIRONMENTAL |
| Operating Temperature (°F) | 32 ~ 104 |
| Operating Temperature (°C) | 0 ~ 40 |
| Operating Relative Humidity (Non-condensing) ( % ) | 0 ~ 90 |
| Operating Elevation ( feet/meters ) | 0-10,000 feet (0-3,048 meters) |
| Storage Temperature (°F) | -4 ~ 122 |
| Storage Temperature (°C) | -20 ~ -50 |
| Storage Relative Humidity (Non-condensing) ( % ) | 0 ~ 90 |
| Storage Elevation ( feet/meters ) | 0-10,000 feet (0-3,048 meters) |
| Online Thermal Dissipation ( BTU/hr ) | 170 |
| Audible Noise at 1.5M from Surface of Unit ( dBA ) | 50 |
| CERTIFICATIONS |
| Certifications | BIS |
| RoHS | Yes |
