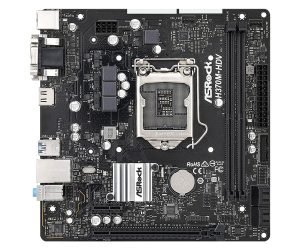

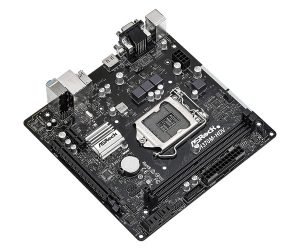

Asrock H370M-HDV/M.2 Micro ATX Motherboard ( Intel Socket LGA1151, Supports 9th and 8th Gen Intel Core CPU, 2 x DDR4 RAM Slots, Max 64GB RAM

ASRock
Add to Wishlist
Note : * Store Price may be vary *

5,400 6,500

Features:

  • Supports 9th and 8th Gen Intel® Core™ Processors (LGA1151)
  • 4 Power Phase
  • Supports DDR4 2666
  • 1 PCIe 3.0 x16, 1 PCIe 3.0 x1
  • Graphics Output Options: HDMI, DVI-D, D-Sub
  • Realtek ALC897 7.1 CH HD Audio Codec
  • 4 SATA3, 1 Ultra M.2 (PCIe Gen3 x4 & SATA3)
  • 4 USB 3.2 Gen1 Type-A (2 Rear, 2 Front),
  • 6 USB 2.0 (4 Rear, 2 Front)
  • Realtek Gigabit LAN
  • Supports ASRock Auto Driver Installer

Ultra M.2 32 Gb/s (PCIe Gen3 x4 & SATA3)

The PCIe Gen3 x4 Ultra M.2 interface pushes data transfer speeds up to 32Gb/s. In addition, it also supports SATA3 6Gb/s M.2 modules.

4 x USB3.2 Gen1

Delivering data transfer rates up to 10X faster than USB 2.0 with optimized power efficiency. USB 3.2 Gen1 technology advances the data transfer rate up to 5Gb/s. ASRock provides 4 x USB 3.2 Gen1 ports onboard allows you to have a stunning data transfer experience.

3 Graphics Outputs

Complete with all three types of most used connectors! Packed with a D-Sub + DVI-D + HDMI combo. Plus the HDMI port supports 4K resolution.

High Density Glass Fabric PCB

High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.

Sapphire Black PCB

Pure black PCB appearance. The new Sapphire Black PCB represents rock-solid quality and gives the motherboard a more mysterious touch

Water Pump Header

This is not only a standard CPU fan header, but also supports water pumps! This header provides a maximum of 2A power for supporting the most popular water pumps. User also can adjust the voltage of water pump to get higher cooling performance with lower noise.

Categories: , Tag:



Model H370M-HDV/M.2
Unique Feature Rock-Solid Durability
– 4 Power Phase
EZ Update
– ASRock Auto Driver Installer
CPU
  • Supports 9th and 8th Gen Intel Core Processors (Socket 1151)
  • Supports CPU up to 95W
  • Supports Intel Turbo Boost 2.0 Technology
Chipset Intel H370
Memory
  • Dual Channel DDR4 Memory Technology
  • 2 x DDR4 DIMM Slots
  • Supports DDR4 2666 / 2400 / 2133 non-ECC, un-buffered memory
  • Max. capacity of system memory: 64GB
  • Supports Intel® Extreme Memory Profile (XMP) 2.0
BIOS 128Mb AMI UEFI Legal BIOS with multilingual GUI support
Graphics
  • 1 x HDMI 1.4, supports HDCP 2.2, 4K Ultra HD (UHD) playback and max. resolution up to 4K 30Hz
  • 1 x DVI-D, supports HDCP 2.2 and max. resolution up to Full HD (1920×1200) 60Hz
  • 1 x D-Sub, supports max. resolution up to Full HD (1920×1200) 60Hz
Audio 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
LAN
  • Gigabit LAN 10/100/1000 Mb/s
  • Realtek 8111H
Slots CPU:
– 1 x PCIe 3.0 x16 Slot (PCIE2), supports x16 mode
Chipset:
– 1 x PCIe 3.0 x1 Slot (PCIE1)
Storage Chipset:

  • 1 x Ultra M.2 Socket (M2_1, Key M), supports type 2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes
  • 4 x SATA3 6.0 Gb/s Connectors
RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
USB
  • 4 x USB 3.2 Gen1 (2 Rear, 2 Front)
  • 6 x USB 2.0 (4 Rear, 2 Front)
Connector
  • 1 x SPI TPM Header
  • 1 x Chassis Intrusion and Speaker Header
  • 1 x CPU Fan Connector (4-pin)
  • 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)
  • 1 x 24 pin ATX Power Connector
  • 1 x 8 pin 12V Power Connector
  • 1 x Front Panel Audio Connector
  • 1 x USB 2.0 Header (Supports 2 USB 2.0 ports)
  • 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)

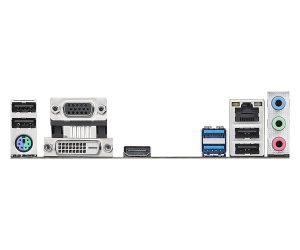

Rear Panel I/O
  • 1 x PS/2 Mouse/Keyboard Port
  • 1 x D-Sub Port
  • 1 x DVI-D Port
  • 1 x HDMI Port
  • 4 x USB 2.0 Ports
  • 2 x USB 3.2 Gen1 Ports
  • 1 x RJ-45 LAN Port
  • HD Audio Jacks: Line in / Front Speaker / Microphone
Software and UEFI Software

  • ASRock Motherboard Utility (A-Tuning)
  • ASRock XFast LAN

UEFI

  • ASRock EZ Mode
  • ASRock Full HD UEFI
  • ASRock My Favorites in UEFI
  • ASRock Auto Driver Installer
  • ASRock Instant Flash
Accessories
  • 1 x User Manual
  • 1 x I/O Shield
  • 2 x SATA Data Cables
  • 1 x Screw for M.2 Socket
Form Factor
  • Micro ATX Form Factor: 7.9-in x 7.5-in, 20.1 cm x 19.1 cm
  • Solid Capacitor design
OS Microsoft Windows 10 64-bit / 11 64-bit
Certifications
  • FCC, CE
  • ErP/EuP ready (ErP/EuP ready power supply is required)
Warranty 3 Years
Note *** Image use as reference only
