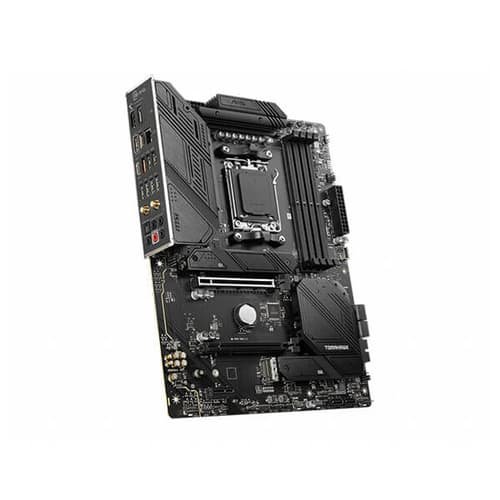

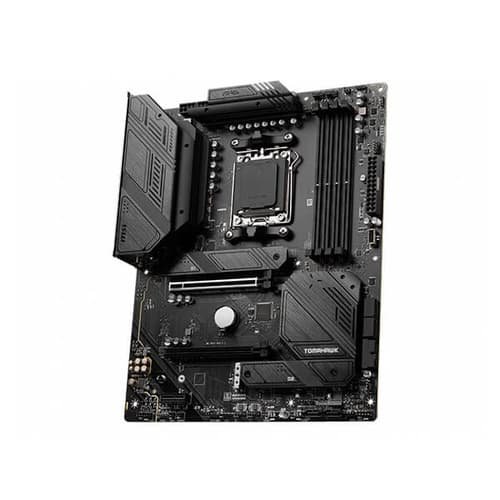

MSI MAG B650 Tomahawk WiFi ATX Motherboard, Supports AMD Ryzen 7000 Series Processors, AM5 Socket

Name: Buy MSI MAG B650 Tomahawk WiFi ATX Motherboard, Supports AMD Ryzen 7000 Series Processors, AM5 Socket | Buy Online at Shivam IT Service Best Price in Siliguri, India, Kolkata, Darjeeling, kurseong, kalimpong, Gangtok, Sikkim, Jalpaiguri, Malbazar, coochbehar, malda, guwahati, assam, patna, bihar » Shivam IT Service
Brand: MSI
SKU: MAG-B650-TOMAHAWK-WIFI
Price: 21999 INR
Availability: InStock

Brand :

SKU: MAG-B650-TOMAHAWK-WIFI

MSI MAG B650 Tomahawk WiFi ATX Motherboard
Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors
Socket AM5
4x DDR5, Maximum Memory Capacity 128GB
Warranty 3 Years
Authorized Distributor Wholesale Price Available
Contact Us- 9933164650, info@shivamitservice.com

Chipset	AMD B650
CPU SUPPORT	Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors Socket AM5
Memory	4x DDR5, Maximum Memory Capacity 128GB Memory Support DDR5 6600+(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200(OC)/5000(OC)/4800(JEDEC) MHz
Onboard Graphics	1x HDMI 1x DisplayPort Support HDMITM 2.1 with HDR maximum resolution of 4K 60Hz Support DP 1.4 maximum resolution of 8K 60Hz
EXPANSION SLOT	2x PCI-E x16 slot Support x16/ x4 1x PCI-E x1 slot PCI_E1 PCIe 4.0 supports up to x16 (From CPU) PCI_E2 PCIe 4.0 supports up to x4 (From Chipset) PCI_E3 PCIe 3.0 supports up to x1 (From Chipset)
Storage	3x M.2 slot M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_2 (From CPU) supports up to PCIe 4.0 x4 supports 2280/2260 devices M.2_3 (From Chipset) supports up to PCIe 4.0 x4 supports 2280/2260 devices 6x SATA 6G port
RAID	Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
USB	2x USB 2.0 (Rear) 4x USB 2.0 (Front) 4x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front) 3x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Front) 1x USB 3.2 Gen2x2 Type C (Rear)
LAN	Realtek® RTL8125B 2.5Gbps LAN
WIRELESS / BLUETOOTH	AMD Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz bands Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.2
Audio	Realtek® ALC4080 Codec 7.1-Channel High Performance Audio Supports S/PDIF output Supports up to 32-Bit/384 kHz playback on front panel
Internal I/O	1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 6x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 2x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 2x USB 3.2 Gen1 Type A 1x USB 3.2 Gen2 Type C
LED FEATURE	4x EZ Debug LED
OPERATING SYSTEM	Support for Windows® 11 64-bit, Windows® 10 64-bit
PCB Dimension	ATX 243.84mmx304.8mm
Warranty	3 Years

CPU SOCKET	AM5-Socket
Memory-Ram-Type	DDR5
