Original price was: ₹11,999.₹7,360Current price is: ₹7,360.
FUTURE PROOF

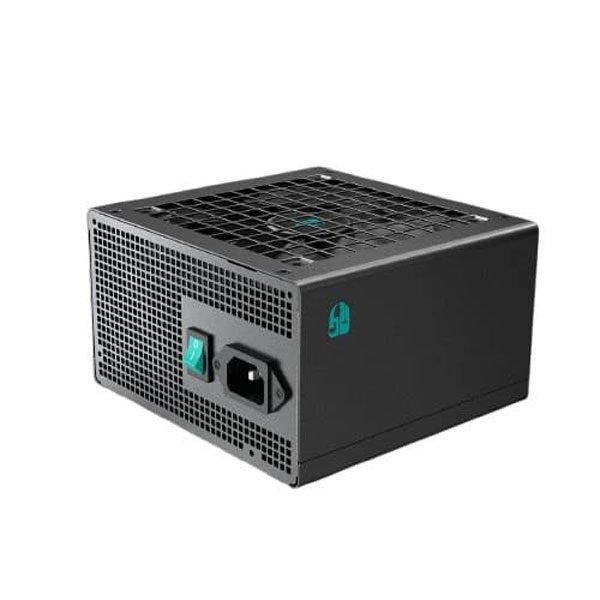

With the ability to provide three times the TGP for 0.1 ms, random power spikes will never be an issue. The DeepCool PN850D will provide stable and consistent power for legacy and next-generation PCs for the foreseeable future.
POWER YOU CAN TRUST
Through the use of a premium main electrolytic capacitor, active PFC, full-bridge SRC LLC, and a DC-to-DC topology, the PN850D can keep the hold-up time to ≥ 16 ms under a high load of 80%.
PCI-E 5.1 POWER
Equipped with a high-grade 105C-resistant 16AWG copper-core sleeved 12V-2×6 cable, the PN850D provides up to 600W for modern GPUs.

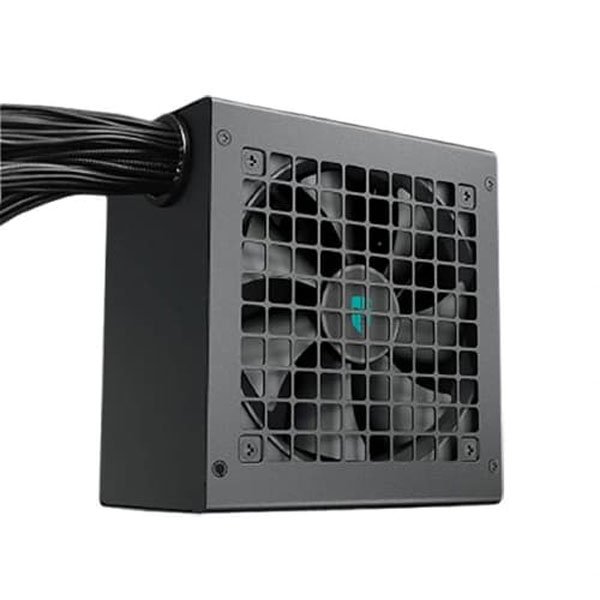

SLEEVED CABLES
The DeepCool PN850D has been outfitted with sleeved cables right out of the box! A welcomed upgrade to add to the premium asesthic and feel of the PSU.

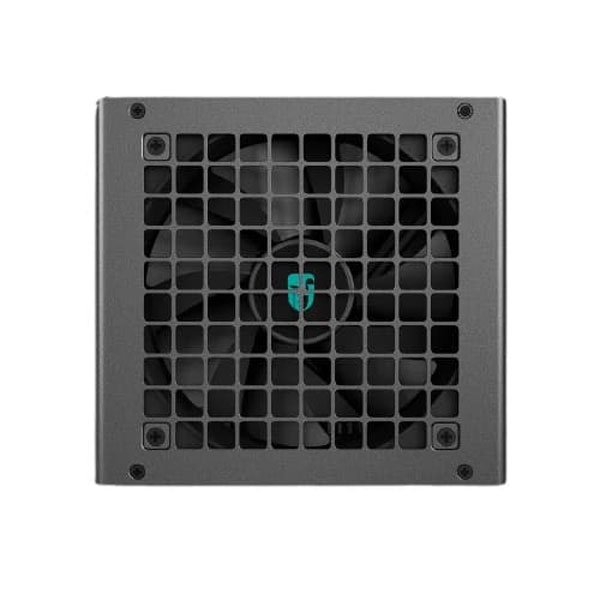

DYNAMIC HYDRO BEARING FAN
The DeepCool PN850D comes equipped with a dynamic 120mm hydro bearing fan that will adjust its speed based on the cooling needs of the PSU.
| Model No. | R-PN850D-FC0B-JGIN-V2 |
| Cables | Main Power Connector (20+4)Pin x 1 – 1PCS CPU(4+4)Pin x 1 – 2PCS PCI-E(6+2)Pin x 1 – 3PCS 12V-2×6(16Pin) x 1 – 1PCS SATA x 4 + 4Pin Peripheral x 1 – 2PCS |
| Type | ATX12V V3.1 |
| Product Dimensions | 150×140×86mm (W x L x H) |
| Efficiency certification | 80Plus Gold |
| Fan Size | 120mm |
| Fan Bearing | HYB(Hydro Bearing) |
| Topology | Active PFC + Full Bridge SRC LLC + DC to DC |
| Capacitors | Chinese Electrolytic Capacitors |
| Power Good Signal | 100-150ms |
| Hold Up Time | ≥16ms(80% Load) |
| Efficiency | ≥90% Under Typical Load(50% Loading) |
| Protection | OPP/OVP/SCP/OTP/OCP/UVP/SIP/NLO |
| Operation Temperature | 0 – 40℃ |
| Regulatory | CE/FCC/CCC/cTUVus/RCM/EAC/BIS/TUV-RH |
| Erp Regulation | ErP 2014 |
| Environment Protection | WEEE/RoHS/Triman/P65 |
| MTBF | 100,000 Hours |
| Warranty | 10 Years |
