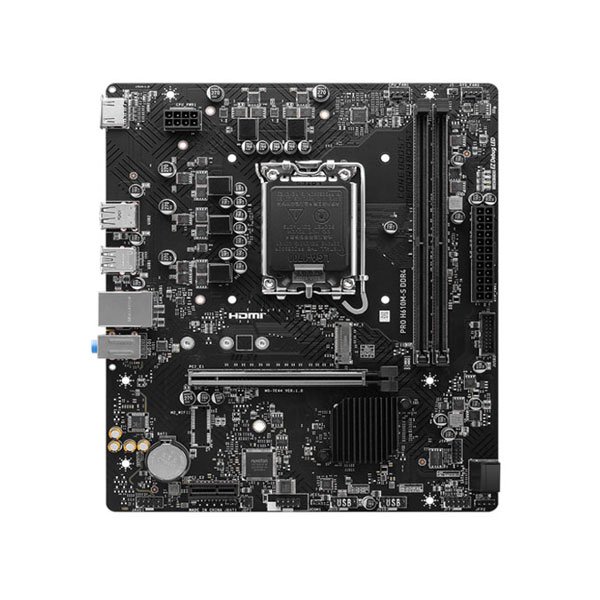

| Model | PRO H610M-S DDR4 |
| Chipset | INTEL H610 |
| CPU | Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors
LGA 1700 |
| Memory | - 2x DDR4, Maximum Memory Capacity 64GB
- Memory Support DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC
- Supports Dual-Channel mode
- Supports non-ECC, un-buffered memory
|
| Onboard Graphics | - 1x HDMI
- Support HDMI 1.4 with HDR, maximum resolution of 4K 30Hz
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed |
| Slot | - 1x PCI-E x16 slot
- 1x PCI-E x1 slot
- PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
- PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
|
| Storage | - 1x M.2
- M.2_1 Source (From Chipset) supports up to PCIe 3.0 x4 , supports 2280/2260/2242 devices
- 2x SATA 6G
|
| USB | - 4x USB 2.0 (Rear)
- 4x USB 2.0 (Front)
- 2x USB 3.2 Gen1 Type A (Rear)
- 2x USB 3.2 Gen1 Type A (Front)
|
| LAN | Realtek RTL8111H Gigabit LAN |
| Audio | - Realtek ALC897 Codec
- 7.1-Channel High Definition Audio
|
| Internal IO | - 1x Power Connector(ATX_PWR)
- 1x Power Connector(CPU_PWR)
- 1x CPU Fan
- 1x System Fan
- 2x Front Panel (JFP)
- 1x Chassis Intrusion (JCI)
- 1x Front Audio (JAUD)
- 1x Com Port (JCOM)
- 1x TPM pin header(Support TPM 2.0)
- 4x USB 2.0 ports
- 2x USB 3.2 Gen1 Type A ports
|
| LED FEATURE | 4x EZ Debug LED |
| BACK PANEL PORTS | - HDMI
- USB 3.2 Gen 1 5Gbps (Type-A)
- USB 2.0
- LAN port
- Audio Connectors
- USB 2.0
|
| OPERATING SYSTEM | Support for Windows 11 64-bit, Windows 10 64-bit |
| PCB Info | mATX
200mmx236.16mm |
| Warranty | 3 Years |
