Technical Details

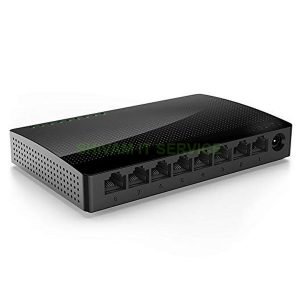

Tenda SG108 8Port Gigabit Desktop Switch 10/100/1000Mbps
Standard&Protocol | IEEE 802.3/u/x/ab |
Interface | 8* 10/100/1000Mbps auto-negotiation RJ45 ports, auto MDI/MDIX |
Transmission Media | 10BASE-T: Cat.3 or Above 100BASE-TX/1000BASE-T: Cat.5, Cat.5e or Above |
Forwarding Rate | 10Mbps: 14880pps 100Mbps: 148800pps 1000Mbps: 1488000pps |
LED | 8*10/100/1000Mbps Link/Act LEDs 1*power LED |
Features | Store-and-forward mechanism Auto-learning and auto-aging MAC address Switching capacity of 16Gbps |
Power Input | 100-240V~50/60Hz |
Power Output | 9V/0.6A |
Consumption | Standby: 2.3W Maximum:5.5W(220V/50Hz) |
Dimension | 142*90*24mm |
Operation Temperature | 0℃~45℃ |
Operating Humidity | 10%~90% non-condensing |
Storage Temperature | -40℃~70℃ |
Storage Humidity | 5%~90% non-condensing |
Tenda SG108 8Port Gigabit Desktop Switch 10/100/1000Mbps
Gigabit Speed, Video Transmission in Seconds
Gigabit Speed: In full duplex mode, the transmission speed can be 2000Mbps, 10x speed of fast ethernet, and data packets are forwarded at full wire speed.
Stay Online for 7*24 Hours and No Packet Loss
With store and forwarding mode, MAC address auto learning and auto aging , SG108 can transfer data without loss to ensure stable and blazing fast wired network performance.
Stylish and Exquisite Design
SG108 is nice and small and won’t take up much desk or floor space. With desktop or wall-mounting design design , you can put SG108 anywhere as you want and move flexibly. It comes in a pretty dome-shaped pattern Plastic case. It will fit equally well in any desktop decor. Not only for Wired network use SG108 also can be a home ornament.
Plug and Play, No Configuration Required
Wired network is available after plug ethernet cable in no time effortlessly. No matter you are a tech-savvy enthusiast or a first-time user, SG108 is super easy and intuitive to setup without time-consuming operations. We made setup quick and easy so you can start experiencing the best of the internet with SG108.
