Original price was: ₹10,500.₹6,150Current price is: ₹6,150.
80 PLUS Bronze certified semi modular PSU, compatible with Intel’s ATX 3.0 specifications. Designed with a native PCIe Gen 5.0 connector, it can power up next-gen entry level GPU with one 12VHPWR cable.
Power Up the Next Generation Hardware:

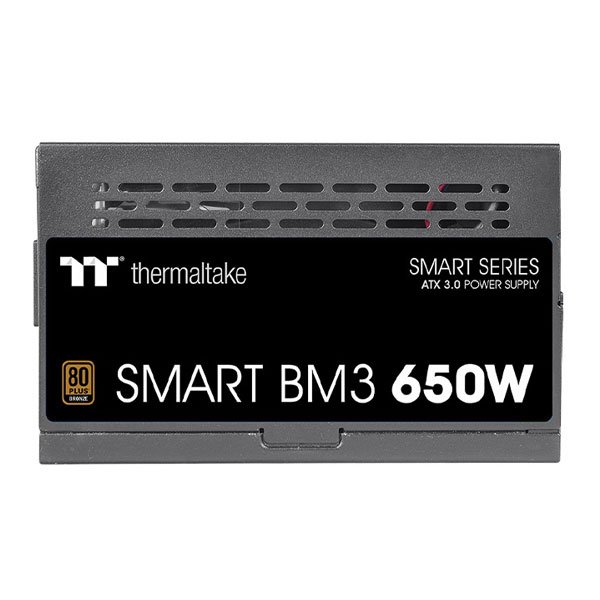

Smart BM3 80 PLUS Bronze 650 Watt certified semi-modular PSU is designed to meet ATX 3.0 standards, it also comes with one PCIe Gen 5.0 (12VHPWR) connector to support modern graphics cards. With an ample 5-year warranty, the Smart BM3 series is able to satisfy the market, where value-oriented users are looking for a new power supply with all the latest features.
Fully Compatible with Intel ATX 3.0 Standards:
Smart BM3 series is fully compatible with Intel ATX 3.0 Specifications which supports up to 200% power excursion, reaches 60% low load efficiency and complies with required power supply timing standards.
PCIe Gen 5.0 Ready:

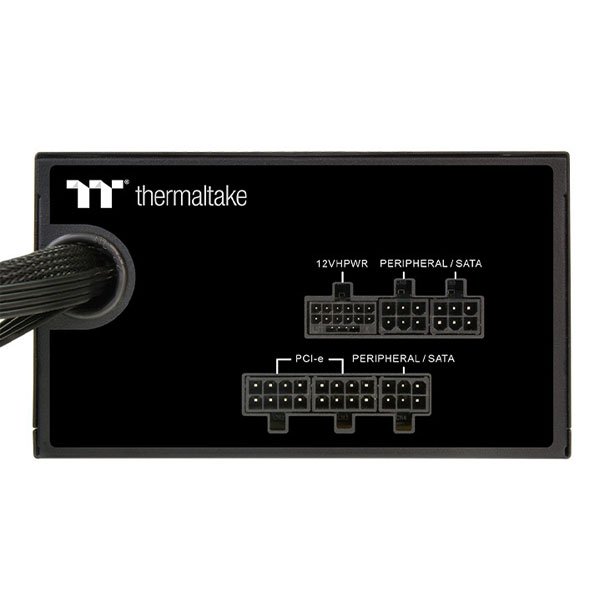

Smart BM3 Bronze series comes with a 16-pin connector to offer powerful and stable performance allowing the PSU to natively run next-generation GPUs.
The wattage marked on the 12VHPWR’s connector is the recommended wattage. (Ref. Intel design guideline)
The native 16-pin (12VHPWR) PCIe connector of the Smart BM3 650W can deliver up to 300W for PCIe 5.0 graphics cards.
Note:
1. Recommended wattage is an estimation of system power demand. Actual power demands may vary based on specific components, usage, and many other factors.
2. Please follow the recommended power requirements from the GPU manufactures before using the 12VHPWR cable.
Made to Comply with the Latest Graphics Cards:
As the power consumption of graphics cards increase, so has their demand for power. The Smart BM3 series is designed to support NVIDIA and AMD graphics cards, it supports 8-pin PCIe cables for AMD graphics cards & entry RTX 40 series graphics cards, it also comes with a 1 x 16-pin connector for RTX 40 series cards that need a PCIe Gen 5.0 connector, ready to supply the graphics cards according to their different ways of connections.
Be Smart, Stay Quiet:

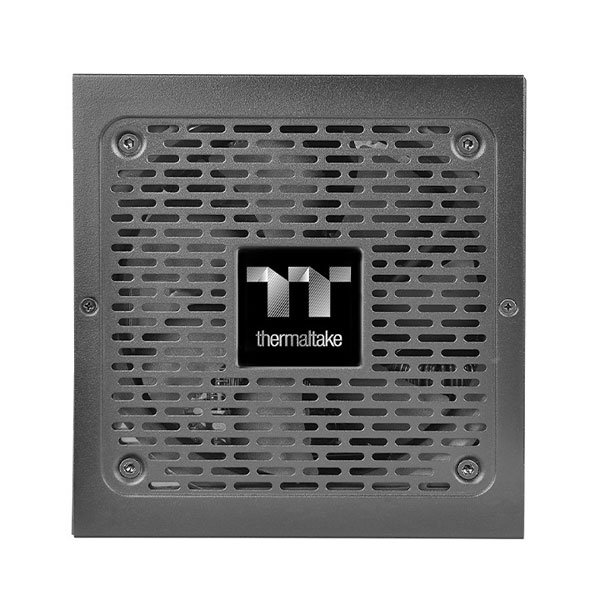

Featuring a 120mm FDB fan to deliver excellent airflow. Furthermore, with the Smart Zero Fan function the fan will not spin until the load exceeds 20% of the power supply, minimizing undesired noise.
High Quality Capacitor:
Includes High quality capacitor that greatly improves the power supplies durability and ensures the Smart BM3 series is stable and reliable.
Built-in Industrial Grade Protection:
To protect the hardware, Smart BM3 is built with industry grade protections: OCP(Over Current Protection), OVP (Over Voltage Protection), UVP(Under Voltage Protection), OPP(Over Power Protection), SCP(Short Circuit Protection), OTP(Over Temperature Protection).
Semi Modular Flat Cable Design:
Soft flat black cables come with sleeve cabling, designed to make cable installation an easy task while fully powering the system at optimal voltages.
80 PLUS Bronze-Certified and Intel C6/C7 States Ready:
Smart BM3 Bronze series saves energy through its high energy efficiency up to 85% and is certified to 80 PLUS Bronze. It has been optimized to work with all generations of Intel’s processors to achieve maximum energy saving.
| Part Number: | PS-SPD-0650MNFABD-3 |
| Series: | SMART Series |
| Colour: | Black |
| Wattage: | 650W |
| Dimension (W / H / D): | 150mm(W)x86mm(H)x140mm(D) |
| PFC (Power Factor Correction): | Active PFC |
| Power Good Signal: | 100-150 msec |
| Hold Up Time: | > 17msec |
| Input Current: | 15A-6A |
| Input Frequency Range: | 50Hz/60Hz |
| Input Voltage: | 100-240V～ |
| Operating Temperature: | 5°C to + 45°C |
| Operating Humidity: | 20% to 85%, non-condensing |
| Storage Temperature: | -40°C to + 55°C |
| Storage Humidity: | 10% to 95%, non-condensing |
| Cooling System: | 12cm FDB Fan |
| Efficiency: | Meet 80 PLUS Bronze at 115Vac input |
| MTBF: | 100,000 hrs minimum |
| Safety Approval: | CE/UKCA/LVD/UKCA/FCC/ICES/TUV/CB/cTUVus/BSMI/CCC |
| PCI-E 6+2pin: | 4 |
| PCIe 12+4pin: | 1(300w) |
| Protection: | OCP/OVP/UVP/OPP/OTP/SCP |
| Warranty: | 5 Years |
