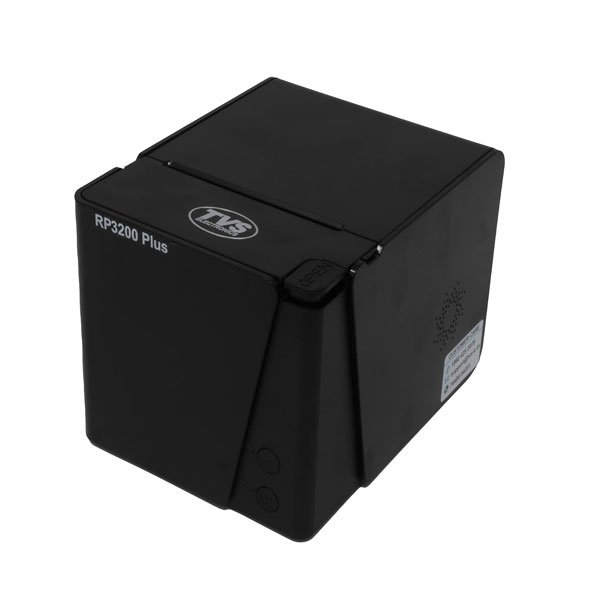

TVS Electronics RP 3200 Plus Thermal Receipt Printer
This TVS printer is a definite plus for retail business as it accelerates the billing process, by reducing transaction time and cutting back on long queues.
ADVANTAGES
- RP 3200 Plus Offers High speed printing of 200 mm/sec
- Triple interface : USB, Serial and Ethernet
- 203 DPI resolution
- Compact Design, occupying small footprint
- HIGH SPEED PRINTING OF 200 mm/sec
- TRIPLE INTERFACE : USB, SERIAL and ETHERNET
- 203 DPI RESOLUTION
- COMPACT DESIGN, OCCUPYING SMALL FOOTPRINT
Technical Details
| Print Model | RP 3200 Plus |
| Printing Method | Direct Thermal Line Printing |
| Resolution | 203 DPI |
| Print Width | Max 72mm |
| Print Speed | Max 200 mm/sec |
| Memory | 4MB Flash |
| Sensor | Paper End & Cover Open |
| Cash Drawer Control | 1 Cash Drawer |
| Interface | USB, Serial, Ethernet |
| Barcodes | JAN8 (EAN8), JAN13 (EAN13), ITFUPC-A, UPC-E, CODE 39, CODE 93, CODE 128, CODABAR, PDF 417 |
| Character set | USA, France, Germany, UK, Denmark I, Denmark II, Italy, Sweden, Spain I, Spain II, Japan, Norway, Latin America, Korea, Japanese, Chinese, GB18030, Gb2312 |
| Fonts | Font A(12*24), Font B(9*17), Kanji Font(24*24) |
| Paper Type | Continuous Paper, Marked Paper |
| Paper thickness | 0.06mm-0.08mm |
| Paper roll width | 80±0.5mm |
| Paper cut | Full cut, partial cut, tear off |
| Input | AC 100-240 V, 50/60Hz |
| Output | 24V, 2.5A |
| Print Head Life time | 100km |
| Cutter life time | 1,000,000 cuts |
| Operation condition | 5~45deg Celcius, 20~90% RH (40 deg Celcius) |
| Storage condition | ~-40deg Celcius – 60deg Celcius 20%~93%RH (40deg Celcius) |
| Dimension | 126(W)*160.5(L)*116.5(H)mm |
| Warranty | 1 Year |
Specification of TVS Electronics RP 3200 Plus (RP-3200-PLUS) Thermal Receipt Printer
- Printing Technology:Direct Thermal – uses heat-sensitive paper to produce receipts without ink cartridges.
- Print Resolution:203 DPI (dots per inch) for clear and legible text, graphics, and barcodes.
- Print Speed:Up to 200 mm/sec (millimeters per second), which translates to roughly 7.9 inches per second, providing fast receipt printing.
- Print Width:Maximum print width of 72 mm (millimeters) accommodating most standard receipt sizes.
- Memory:4MB Flash memory for storing logos, fonts, or frequently used formats.
- Interfaces:Versatile connection options with USB, Serial, and Ethernet interfaces.
- Paper Handling:Works with 72 mm ± 0.5 mm thermal paper rolls.
- Paper Sensors:Includes a paper end sensor and cover open sensor to prevent printing errors.
- Cash Drawer Control:Can connect to a cash drawer for a complete point-of-sale solution (may require a separate cable).
- Barcodes:Supports printing various barcode symbologies including JAN8 (EAN8), JAN13 (EAN13), ITFUPC-A, UPC-E, CODE 39, CODE 93, CODE 128, CODABAR, and PDF 417.
Additional Information:
- The TVS RP 3200 Plus likely includes LED and buzzer indicators for operational status.
- While not explicitly mentioned in specifications, the printer likely has a compact design for space-saving placement.
- Environmental conditions for operation and storage are typically specified by the manufacturer but may not be readily available online.
