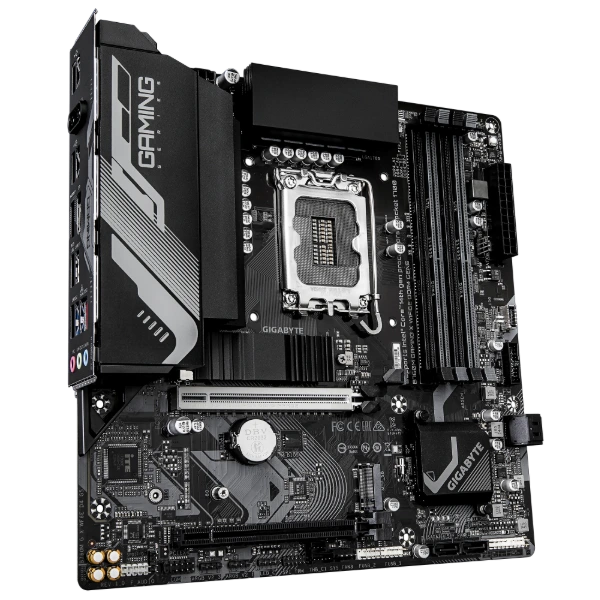

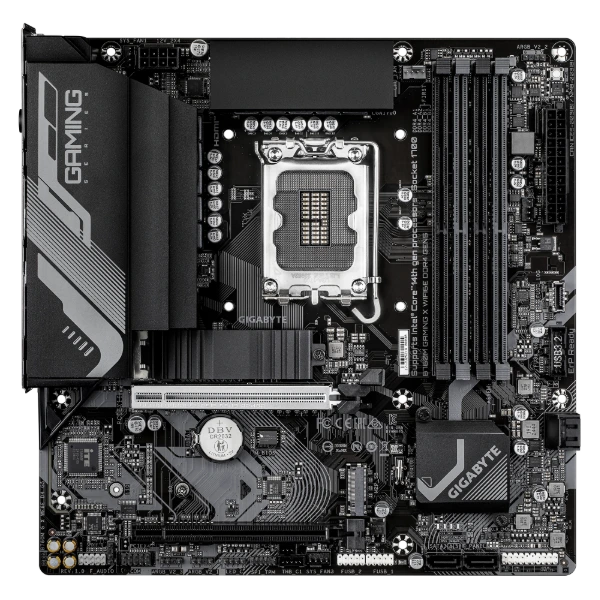

Gigabyte B760M Gaming X WiFi6E DDR4 GEN5 M-ATX Motherboard,Support 14th and 13th Gen,Dual Channel,2.5GbE LAN & Wi-Fi 6E 802.11ax,PCIe 5.0 Ready PCB,

Sale Price
₹16,248
-46%Off

M.R.P.: ₹30,000

Inclusive of all taxesEMI starts at ₹571. Easy EMI available EMI options
Brand:Gigabyte
Warranty:3-Years
EAN/GTIN:471933187371
UPC:88952305136
SKU:B760M-G-X-WF6E-D4-GEN5
UPI Offer

OFFERS

Check offers according to your payment options & save more

100% Secured by
FAQs
Top Brand
3-Years
Free Delivery
Secure transaction
Sale Price
₹16,248
-46%Off

M.R.P.: ₹30,000

In stock

FREE scheduled delivery: Wednesday 2 September - Tuesday 8 September, 7 am - 9 pm.

Check Delivery Availability

Price

₹16,248

Product Description

  • PCIe Gen5 Performance : Perfect Sync to Win

  • Supports Intel® Core™ 14th/ 13th/12 processors

  • Efficient Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard

  • WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation

  • WIFI Compass : Auto detects the best antenna position for strongest Wi-Fi signal

  • EZ-Latch : PCIe 5.0x16 Slot with Quick Release Design

  • PCIe UD Slot : SMD PCIe 5.0 Armor for enhanced graphics card support

  • Unparalleled Performance : Hybrid 8+1+1 Phases VRM Solution

  • Dual Channel DDR4 : 4*DIMMs with XMP Memory Module Support

  • Fast Networks : 2.5GbE LAN & Wi-Fi 6E 802.11ax

  • Extended Connectivity : Front USB-C® 10Gb/s, DP, HDMI

  • Next Generation Storage : 2*PCIe 4.0 x4 M.2 Connectors

  • Smart Fan 6 : Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP

  • Q-Flash Plus : Update BIOS Without Installing the CPU, Memory and Graphics Card

Technical Details

CPULGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors (Go to GIGABYTE's website for the latest CPU support list.) L3 cache varies with CPU
ChipsetIntel® B760 Express Chipset
MemorySupport for DDR4 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MT/s memory modules 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture
Onboard GraphicsIntegrated Graphics Processor-Intel® HD Graphics support: - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
AudioRealtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel
LANRealtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication moduleIntel® Wi-Fi 6E AX210 - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.3
Expansion SlotsCPU: - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: - 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4)
Storage InterfaceCPU: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) - 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
USBChipset: - 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header - 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) - 1 x USB 2.0/1.1 port on the back panel Chipset+2 USB 2.0 Hubs: - 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
Internal I/O Connectors1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 3 x addressable LED strip headers 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB Type-C® header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 2 x Thunderbolt™ add-in card connectors 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only) 1 x serial port header 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper

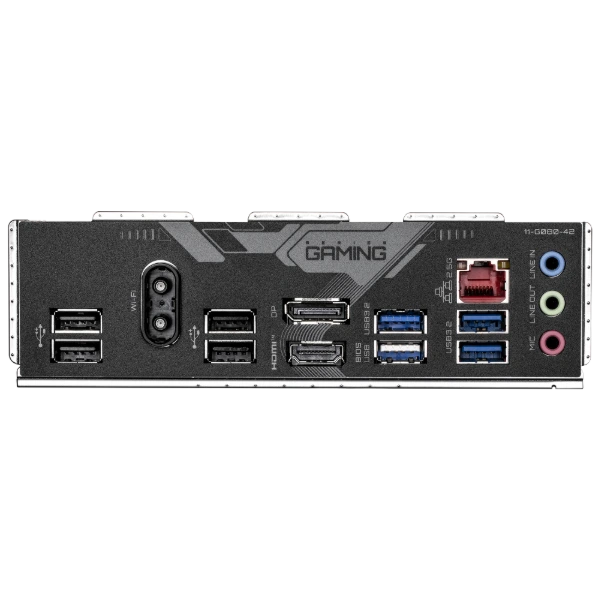

Back Panel Connectors3 x USB 3.2 Gen 1 ports 5 x USB 2.0/1.1 ports 2 x antenna connectors (2T2R) 1 x HDMI port (Note) 1 x DisplayPort (Note) 1 x RJ-45 port 3 x audio jacks (Note) Actual support may vary by CPU
I/O ControlleriTE® I/O Controller Chip
H/W MonitoringVoltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control * Whether the fan speed control function is supported will depend on the fan you install.
BIOS1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Bundle SoftwareNorton® Internet Security (OEM version) LAN bandwidth management software * Service discontinued as a result of contract termination by the software provider.
Operating SystemSupport for Windows 11 64-bit Support for Windows 10 64-bit
Form FactorMicro ATX Form Factor; 24.4cm x 24.4cm
Warranty3 Years
