Gigabyte B850 Gaming X WiFi6E Motherboard,(B850 GAMING X WIFI6E)

Sale Price
₹17,990
-40%Off

M.R.P.: ₹30,000

Inclusive of all taxesEMI starts at ₹632. Easy EMI available EMI options
Brand:Gigabyte
Warranty:3-Years
EAN/GTIN:4719331866457
UPC:889523046135
SKU:B850-GAMING-X-WIFI6E
UPI Offer

OFFERS

Check offers according to your payment options & save more

100% Secured by
FAQs
Top Brand
3-Years
Free Delivery
Secure transaction
Sale Price
₹17,990
-40%Off

M.R.P.: ₹30,000

In stock

FREE scheduled delivery: Wednesday 2 September - Tuesday 8 September, 7 am - 9 pm.

Check Delivery Availability

Price

₹17,990

Product Description

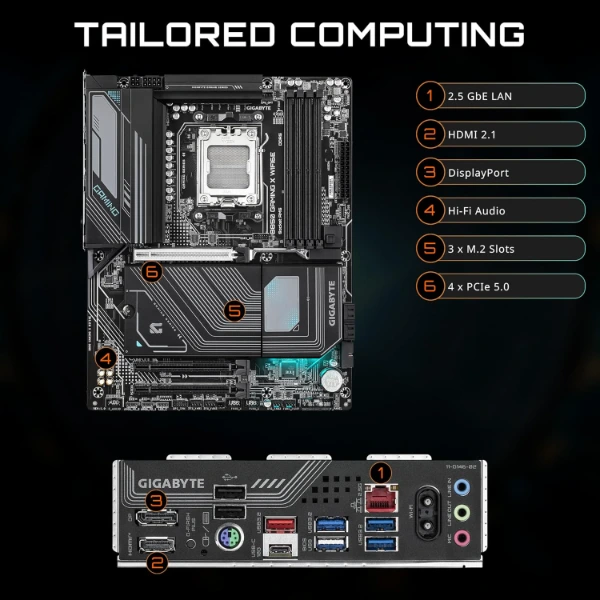

  • X3D Turbo Mode : Unleash new era gaming performance

  • DDR5 OC up to 8200MT/s

  • AMD Socket AM5 : Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors

  • Digital twin 12+2+2 phases VRM solution

  • Dual Channel DDR5 : 4*DIMMs with AMD EXPO™Memory Module Support

  • WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation

  • EZ-Latch Plus : PCIe and M.2 slots with Quick Release & Screwless Design

  • EZ-Latch Click : M.2 heatsinks with screwless design

  • Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW.

  • Ultra-Fast Storage : 3*M.2 slots, including PCIe 5.0×4 slot

  • Efficient Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard Ext.

  • Fast Networking : 2.5GbE LAN & Wi-Fi 6E with directional Ultra-high gain antenna

  • Extended Connectivity : HDMI, Displayport

Technical Details

Cpu TypeRyzen 9000,Ryzen 8000,Ryzen 7000
ChipsetB850
Memory Speedup to 8200
Max Memory Support256 GB
Supported Memory TypeDDR5
Channel SupportedDual Channel
Memory FeatureSupport for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to “Memory Support List” on Brand website for more information.)
Graphics Port1 x HDMI,1 x DisplayPort
Expansion Slots1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: – 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1(PCIEX1_1, PCIEX1_2)
Wireless NetworkingWiFi 6E,Bluetooth 5.3
Back Panel I/O Ports1 x DisplayPort 1 x HDMI port 1 x Q-Flash Plus button 1 x PS/2 keyboard/mouse port 1 x USB Type-C® port, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 2 Type-A port (red) 3 x USB 3.2 Gen 1 ports 3 x USB 2.0/1.1 ports 1 x RJ-45 port 2 x antenna connectors (2T2R) 3 x audio jacks
Internal I/O Connector1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 3 x system fan headers 1 x system fan/water cooling pump header 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 3 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 2×2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x reset jumper 1 x Clear CMOS jumper
Form FactorATX
Warranty3 Years
