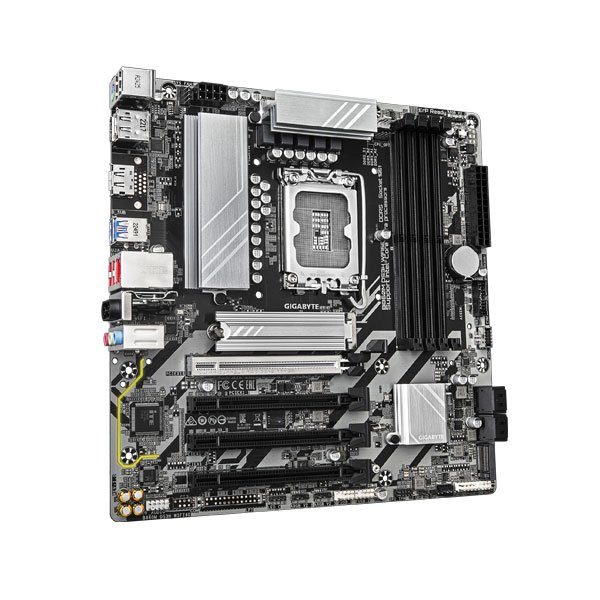

GIGABYTE B860M DS3H WIFI6E M-ATX Motherboard

Sale Price
₹16,890
-36%Off

M.R.P.: ₹26,200

Inclusive of all taxesEMI starts at ₹593. Easy EMI available EMI options
Brand:Gigabyte
Warranty:3-years
EAN/GTIN:4719331866815
UPC:88952304626
SKU:B860M-DS3H-WIFI6E
UPI Offer

OFFERS

Check offers according to your payment options & save more

100% Secured by
FAQs
Top Brand
3-years
Free Delivery
Secure transaction
Sale Price
₹16,890
-36%Off

M.R.P.: ₹26,200

In stock

FREE scheduled delivery: Wednesday 2 September - Tuesday 8 September, 7 am - 9 pm.

Check Delivery Availability

Price

₹16,890

Product Description

  • Supports Intel Core Ultra processors (Series 2)

  • Hybrid 5+1+2 phases VRM solution

  • D5 Bionic Corsa for Infinite Memory Performance

  • AI Perfdrive : Provides optimal and customized BIOS preset profile for users

  • WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation

  • EZ-Latch : PCIe x16 Slot with Quick Release Design

  • Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW

  • New  Power Monitor  in  HWinfo for real-time monitoring on CPU power phases

  • Ultra-Fast Storage : 2*M.2 slots, including 1* PCIe 5.0 x4

  • M.2 Thermal Guard : To Ensure M.2 SSD Performance

  • Fast Networking : 2.5GbE LAN & Wi-Fi 6E 802.11ax

  • Extended Connectivity : 2*DisplayPort, HDMI

 Infinite Memory Performance

UD motherboards boost DDR5 memory performance and offer top-notch compatibility using various advanced methods.

Durable Performance

GIGABYTE Ultra Durable motherboards built with optimal components inside out provide the prime performance and timeless platform.

Hybrid VRM Design

The best VRM design ever built with the highest quality components. Delivers enhanced system performance with ultimate hardware scalability.

Comprehensive Thermal

UD motherboards come with advanced full-metal thermal design and durable heatsinks to keep your system cool and efficient.

M.2 Thermal Guard

The M.2 Thermal Guard prevents throttling and bottlenecks from high speed M.2 SSDs as it helps to dissipate heat before it becomes an issue.

Future Connectivity

The ultimate connectivity with blazing data-transfer speeds through the next generation network and storage.

802.11ax Wi-Fi 6E

The latest Wireless solution 802.11ax Wi-Fi 6E with new dedicated 6GHz band, enables gigabit wireless performance, provides smooth video streaming, better gaming experience, few dropped connections and speeds up to 2.4Gbps. Moreover, Bluetooth 5 provides 4X range over BT 4.2 and with faster transmission.

2.5GbE LAN

Supercharge your gaming with 2.5GbE LAN Achieve lightning-fast speeds, minimal lag, and unbeatable performance to elevate your gaming setup and dominate the competition.

PCIe 5.0 / 4.0 Hardware Design

Featuring PCIe 5.0 x16 slot and PCIe 5.0 / 4.0 M.2 slot support, GIGABYTE Motherboards are ready to work with the PCIe 5.0 / 4.0 devices to provide the superior performance.

Hi-Fi Audio

High-End Audio Capacitors Audio Noise Guard

Easy Friendly

Innovative and intuitive hardware, software, and BIOS interface design to create your personal style.

WIFI EZ-Plug

The WIFI EZ-Plug design integrates Wi-Fi antenna plugs into one adapter, EZ to install.

EZ Debug Zone

Centralized debug LEDs and control buttons provide a handy and organized troubleshooting process when building a new computer.

EZ-Latch Designs

User-friendly designs simplifying the assembly process.

UC BIOS

Restructured with user-centered and intuitive performance adjustment mechanisms.

Q-FLASH Auto Scan

The new Auto Scan function featues when using USB flashdrive during Q-Flash, the BIOS file will be auto scanned instead of searching manually.

Technical Details

CPULGA1851 socket: Support for Intel® Core™ Ultra Processors (Go to GIGABYTE’s website for the latest CPU support list.) L3 cache varies with CPU
ChipsetIntel® B860 Express Chipset
MemorySupport for DDR5 9066(O.C)/8800(O.C) /8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) /6400/5600 MT/s memory modules 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to “Memory Support List” on GIGABYTE’s website for more information.)
Onboard GraphicsIntegrated Graphics Processor-Intel® HD Graphics support: – 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz* Support for HDMI 2.1 version and HDCP 2.3.- 2 x DisplayPort, supporting a maximum resolution of 3840×2160@144 Hz* Support for DisplayPort 2.1 version.(Graphics specifications may vary depending on CPU support.) Support for up to triple-display at the same time
AudioRealtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
LANRealtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication moduleIntel® Wi-Fi 6E AX211 (PCB rev. 1.0) – WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands – BLUETOOTH 5.3 – Support for 11ax 160MHz wireless standard Realtek® Wi-Fi 6E RTL8852CE (PCB rev. 1.1) – WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands – BLUETOOTH 5.3 – Support for 11ax 160MHz wireless standard (Actual data rate may vary depending on environment and equipment.)
Expansion SlotsCPU: – 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.Chipset: – 3 x PCI Express x16 slots, supporting PCIe 4.0 and running at x1 (PCIEX1_1/2/3)
Storage InterfaceCPU: – 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU) Chipset: – 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2N_SB) – 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
USBChipset: – 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header – 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel – 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) – 3 x USB 2.0/1.1 ports on the back panel Chipset+USB 2.0 Hub: – 4 x USB 2.0/1.1 ports available through the internal USB headers
Internal I/O Connectors1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 1 x system fan header 1 x system fan/water cooling pump header 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only) 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper

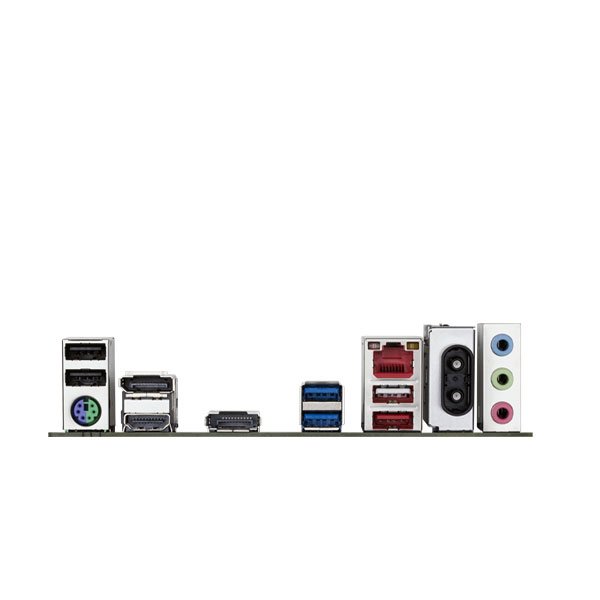

Back Panel Connectors1 x PS/2 keyboard/mouse port 1 x HDMI port (Note) 2 x DisplayPorts (Note) 1 x USB 3.2 Gen 2 Type-A port (red) 2 x USB 3.2 Gen 1 ports 3 x USB 2.0/1.1 ports 2 x antenna connectors (2T2R) 1 x RJ-45 port 3 x audio jacks(Note) Actual support may vary by CPU.
I/O ControlleriTE® I/O Controller Chip
H/W MonitoringVoltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
BIOS1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique FeaturesSupport for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup
Bundled SoftwareNorton® Internet Security (OEM version) LAN bandwidth management software
Operating SystemSupport for Windows 11 64-bit Support for Windows 10 64-bit * The Intel® NPU driver is only supported on Windows 11.
Form FactorMicro ATX Form Factor; 24.4cm x 24.4cm
Warranty3 Years
