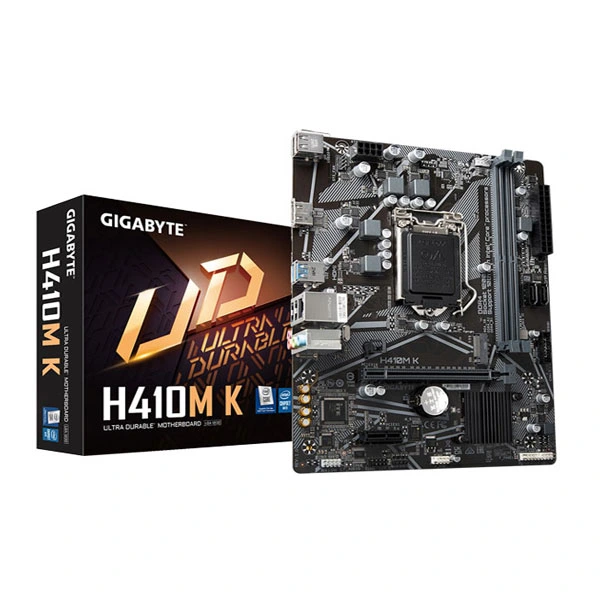

Gigabyte H410M K DDR4 Motherboard

Support 10th Gen Intel® Core™ i9/i7/i5/i3 processors
Ram DDR4 2933/2666/2400/2133 MHz memory
Form Factor Micro ATX
Warranty 3 Years

Sale Price
₹7,505
-14%Off

M.R.P.: ₹8,750

Inclusive of all taxesEMI starts at ₹264. Easy EMI available EMI options
Brand:Gigabyte
SKU:H410M-K-DDR4
UPI Offer

OFFERS

Check offers according to your payment options & save more

100% Secured by
FAQs
Top Brand
1 Year Warranty
Free Delivery
Secure transaction
Sale Price
₹7,505
-14%Off

M.R.P.: ₹8,750

In stock

FREE scheduled delivery: Saturday 17 October - Friday 23 October, 7 am - 9 pm.

Check Delivery Availability

Price

₹7,505

Product Description

  • Supports 10th Gen Intel® Core™ Processors

  • Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs

  • 8-Channel HD Audio with High Quality Audio Capacitors

  • NVMe PCIe Gen3 x4 2280 M.2 Connector

  • GbE LAN with Bandwidth Management

  • Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP

  • GIGABYTE APP Center, Simple and Easy Use

  • Anti-Sulfur Resistors Design

Technical Details

modelH410M K
CPULGA1200 package: Support 10th Generation Intel® Core™ i9 processors/ Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors L3 cache varies with CPU
ChipsetIntel® H470 Express Chipset Memory 10th Generation Intel® Core™ i9/i7 processors: Support for DDR4 2933/2666/2400/2133 MHz memory modules 10th Generation Intel® Core™ i5/i3/Pentium®/Celeron® processors: Support for DDR4 2666/2400/2133 MHz memory modules 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (Please refer “Memory Support List” for more information.)
Onboard GraphicsIntegrated Graphics Processor-Intel® HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096×2160@30 Hz * Support for HDMI 1.4 version and HDCP 2.3. (Graphics specifications may vary depending on CPU support.) Audio Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
LANRealtek® GbE LAN chip (1 Gbps/100 Mbps)
Expansion SlotsCPU:1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16 Chipset:1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
Storage InterfaceChipset:1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 3.0 x4/x2 SSD support) 2 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, and RAID 5 Intel® Optane™ Memory Ready
USBChipset: 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header) Internal I/O Connectors 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 1 x RGB LED strip header 1 x M.2 Socket 3 connector 2 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header 1 x serial port header 1 x Clear CMOS jumper Back Panel Connectors 1 x HDMI port 2 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks
I/O ControlleriTE® I/O Controller Chip H/W Monitoring Voltage detection Temperature detection Fan speed detection Fan fail warning Fan speed control * Whether the fan speed control function is supported will depend on the cooler you install. BIOS 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 Unique Features Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS Ambient LED EasyTune Smart Backup System Information Viewer Support for Q-Flash Support for Xpress Install Bundled Software Norton® Internet Security (OEM version) LAN bandwidth management software Operating System Support for Windows 11 64-bit Support for Windows 10 64-bit
Form FactorMicro ATX Form Factor; 22.6cm x 18.5cm Remark Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors’ website or 3rd party website. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
Warranty3Years
