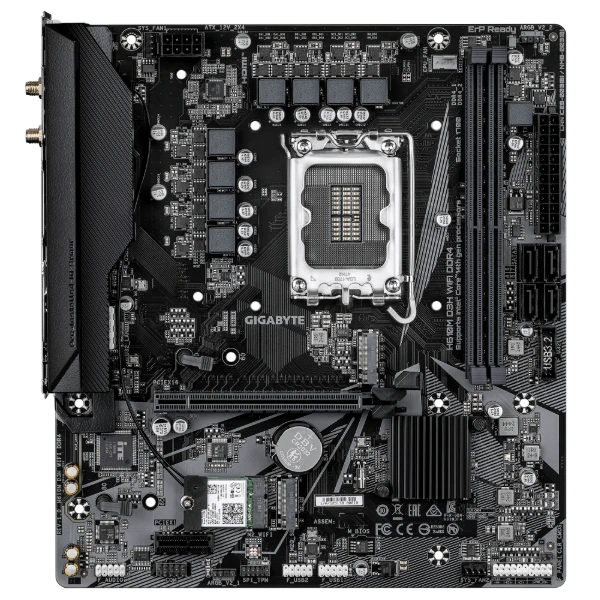

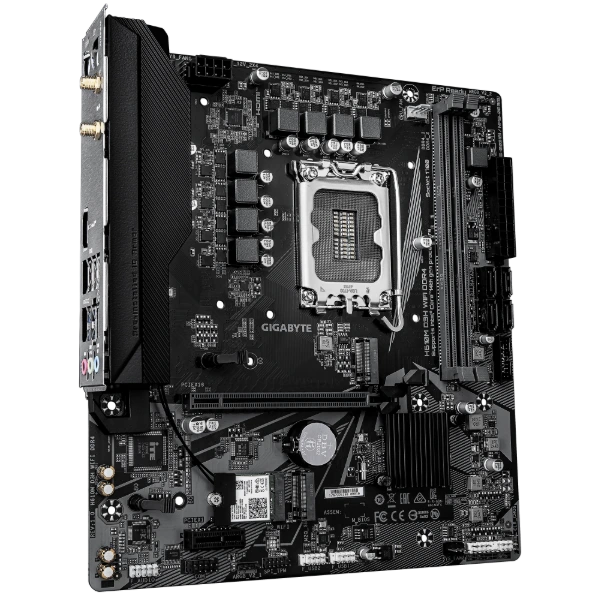

Gigabyte H610M D3H WIFI DDR4 Motherboard,with 6+1+1 Hybrid Phases Digital VRM Design, Wi-Fi 802.11ac, PCIe 4.0* Design, Gen3 x4 M.2, Anti-Sulfur Resistor, Smart Fan 6

Sale Price
₹8,880
-34%Off

M.R.P.: ₹13,500

Inclusive of all taxesEMI starts at ₹312. Easy EMI available EMI options
Brand:Gigabyte
Warranty:3-Years
EAN/GTIN:4719331873622
UPC:889523051405
SKU:H610M-D3H-WIFI-DDR4
UPI Offer

OFFERS

Check offers according to your payment options & save more

100% Secured by
FAQs
Top Brand
3-Years
Free Delivery
Secure transaction
Sale Price
₹8,880
-34%Off

M.R.P.: ₹13,500

In stock

FREE scheduled delivery: Wednesday 2 September - Tuesday 8 September, 7 am - 9 pm.

Check Delivery Availability

Price

₹8,880

Product Description

  • Supports Intel® Core™ 14th/ 13th /12th processors

  • Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs

  • 6+1+1 Hybrid Digital VRM Design

  • Fast Networks：Wi-Fi 802.11ac & GbE LAN

  • NVMe PCIe 3.0 x4 M.2

  • High Quality Audio Capacitors and Audio Noise Guard

  • Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP

  • GIGABYTE APP Center, Simple and Easy Use

  • Anti-Sulfur Resistors Design

Technical Details

CPULGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors L3 cache varies with CPU * Please refer to "CPU Support List" for more information.
ChipsetIntel® H610 Express Chipset
MemorySupport for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture
Onboard GraphicsIntegrated Graphics Processor-Intel® HD Graphics support: - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
AudioRealtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel
LANRealtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
Wireless Communication moduleIntel® Wireless- AC 9560 - WIFI 802.11 a, b, g, n, ac, supporting 2.4/5 GHz Dual-Band - BLUETOOTH 5.1 - Support 11ac 160MHz wireless standard (Actual data rate may vary depending on environment and equipment.)
Expansion SlotsCPU: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 Chipset: - 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
Storage InterfaceChipset: - 1 x M.2 connector (Socket 3, M key, type 2280/2260 PCIe 3.0 x4/x2 SSD support) (M2P_SB) - 1 x M.2 connector (Socket 3, M key, type 2280/2260 PCIe 3.0 x2 SSD support) (M2Q_SB) - 4 x SATA 6Gb/s connectors
USBChipset: - 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) - 2 x USB 2.0/1.1 ports available through the internal USB header Chipset+2 USB 2.0 Hubs: - 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
Internal I/O Connectors1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 2 x addressable RGB Gen2 LED strip headers 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI / GC-TPM2.0 SPI 2.0 / GC-TPM2.0 SPI V2 module only) 1 x serial port header 1 x Clear CMOS jumper

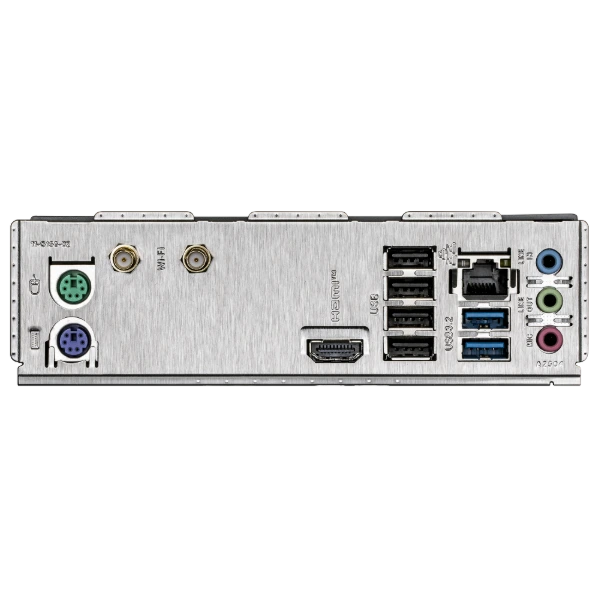

Back Panel Connectors1 x PS/2 keyboard port 1 x PS/2 mouse port 2 x SMA antenna connectors (2T2R) 1 x HDMI port 2 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks
I/O ControlleriTE® I/O Controller Chip
H/W MonitoringVoltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control
BIOS1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique FeaturesSupport for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash
Bundle SoftwareNorton® Internet Security (OEM version) LAN bandwidth management software
Operating SystemSupport for Windows 11 64-bit Support for Windows 10 64-bit
Form FactorMicro ATX Form Factor; 24.4cm x 22.0cm
Warranty3Years
