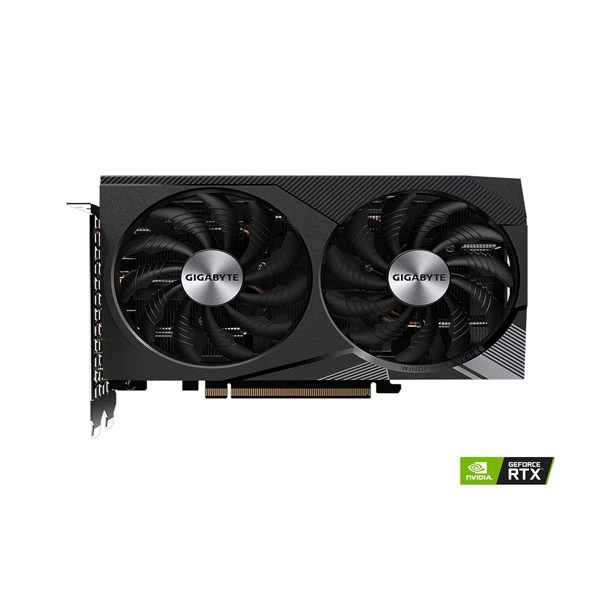

Gigabyte RTX 3060 Windforce OC 12GB Graphics Card (GV-N3060WF2OC-12GD)

• NVIDIA Ampere Streaming Multiprocessors

• 2nd Generation RT Cores

• 3rd Generation Tensor Cores

• Powered by GeForce RTX™ 3060

• Integrated with 12GB GDDR6 192-bit memory interface

• WINDFORCE 2X Cooling System with alternate spinning fans

• Screen cooling

• 200 mm compact card size

• Limited Hash Rate version

WINDFORCE 2X COOLING SYSTEM

The WINDFORCE 2X cooling system features two 90mm unique blade fans, alternate spinning, 3 composite copper heat pipes direct touch GPU, 3D active fan and Screen cooling, which together provide high efficiency heat dissipation.

ALTERNATE SPINNING

The GIGABYTE “Alternate Spinning” is the only solution that can solve the turbulent airflow of adjacent fans. Since the adjacent fans rotate in the same direction, the airflow direction is opposite between the fans, which will cause turbulent airflow and reduce heat dissipation efficiency. GIGABYTE turns the adjacent fans in the opposite direction, so that the airflow direction between the two fans is the same, reducing the turbulence and enhancing the airflow pressure.

UNIQUE BLADE FAN

The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface, effectively enhancing the airflow.

3D ACTIVE FAN

The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game. It allows gamers to enjoy gameplay in complete silence when the system is running light or idle.

HEAT PIPES DIRECT TOUCH

The shape of the pure copper heat pipe maximizes the direct contact area with the GPU, enhancing heat transfer. The heat pipe also covers the VRAM through a large metal plate contact to ensure proper cooling.

GRAPHENE NANO LUBRICANT

Graphene nano lubricant can extend the life of fan by 2.1 times, close to the life of double ball bearing, and is quieter.
