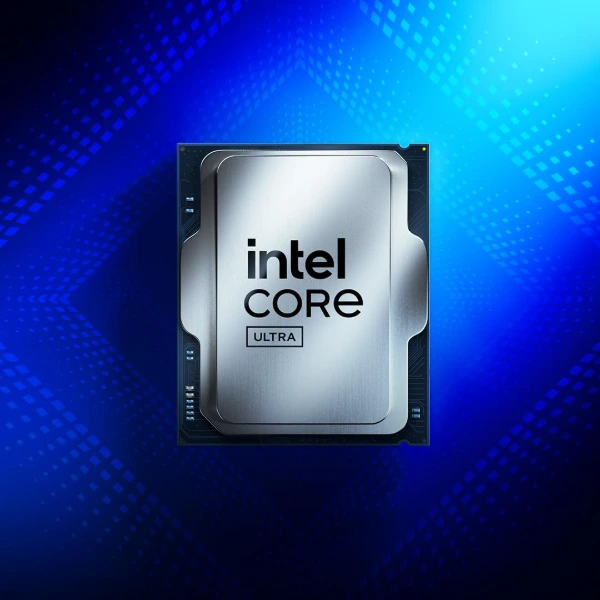

Intel Core Ultra 7 265K 3.9 GHz 20-Core LGA 1851 Processor (BX80768265K)
CPU Specifications | |
Total Cores | 20 |
# of Performance-cores | 8 |
# of Efficient-cores | 12 |
Total Threads | 20 |
Max Turbo Frequency | 5.5GHz |
Intel® Turbo Boost Max Technology 3.0 Frequency | 5.5GHz |
Performance-core Max Turbo Frequency | 5.4GHz |
Efficient-core Max Turbo Frequency | 4.6GHz |
Performance-core Base Frequency | 3.9GHz |
Efficient-core Base Frequency | 3.3GHz |
Cache | 30 MB Intel® Smart Cache |
Total L2 Cache | 36 MB |
Processor Base Power | 125 W |
Maximum Turbo Power | 250 W |
Intel® Deep Learning Boost (Intel® DL Boost) on CPU | Yes |
AI Software Frameworks Supported by CPU | OpenVINOâ„¢, WindowsML, DirectML, ONNX RT, WebNN |
CPU Lithography | TSMC N3B |
Memory Specifications | |
Max Memory Size (dependent on memory type) | 192 Gb |
Memory Types | Up to DDR5 6400 MT/s |
Maximum Memory Speed | 6400 Mhz |
Max # of Memory Channels | 2 |
ECC Memory Supported | Yes |
GPU Specifications | |
GPU Name | Intel Graphics |
Graphics Base Frequency | 300 Mhz |
Graphics Max Dynamic Frequency | 2 GHz |
GPU Peak TOPS (Int8) | 8 |
Graphics Output | DP2.1 UHBR20, HDM2.1 FRL 12GHz, eDP1.4b |
Xe-cores | 4 |
Max Resolution (HDMI) | 4K @ 60Hz (HDMI 2.1 TMDS) 8K @ 60Hz (HDMI2.1 FRL) |
Max Resolution (DP)‡ | 8K @ 60Hz |
Max Resolution (eDP – Integrated Flat Panel)‡ | 4K @ 60Hz |
DirectX* Support | 12 |
OpenGL* Support | 4.5 |
OpenCL* Support | 3 |
Intel® Quick Sync Video | Yes |
# of Displays Supported | 2 |
Intel® Deep Learning Boost (Intel® DL Boost) on GPU | Yes |
NPU Specifications | |
NPU Name | Intel® AI Boost |
NPU Peak TOPS (Int8) | 13 |
Sparsity Support | Yes |
Windows Studio Effects Support | Yes |
AI Software Frameworks Supported by NPU | OpenVINOâ„¢, WindowsML, DirectML, ONNX RT, WebNN |
Expansion Options | |
Direct Media Interface (DMI) Revision | 4 |
Max # of DMI Lanes | 8 |
Intel® Thunderbolt™ 4 | Yes |
Scalability | 1S Only |
PCI Express Revision | 5.0 and 4.0 |
PCI Express Configurations | Up to 1×16+2×4, 2×8+2×4, 1×8+4×4 |
Max # of PCI Express Lanes | 24 |
Package Specifications | |
Sockets Supported | FCLGA1851 |
Thermal Solution Specification | PCG 2020A |
Max Operating Temperature | 105 °C |
Advanced Technologies | |
Intel® Volume Management Device (VMD) | Yes |
Intel® Gaussian & Neural Accelerator | 3.5 |
Intel® Thread Director | Yes |
Intel® Speed Shift Technology | Yes |
Intel® Turbo Boost Max Technology 3.0 | Yes |
Intel® Turbo Boost Technology | 2 |
Intel® 64 | Yes |
Instruction Set | 64 Bit |
Instruction Set Extensions | Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2 |
Idle States | Yes |
Enhanced Intel SpeedStep® Technology | Yes |
Thermal Monitoring Technologies | Yes |
Security & Reliability | |
Intel vPro® Eligibility | Intel vPro® Enterprise, Intel vPro® Platform |
Intel® Threat Detection Technology (TDT) | Yes |
Intel® Active Management Technology (AMT) | Yes |
Intel® Standard Manageability (ISM) | Yes |
Intel® Remote Platform Erase (RPE) | Yes |
Intel® One-Click Recovery | Yes |
Intel® Hardware Shield Eligibility | Yes |
Intel® Control-Flow Enforcement Technology | Yes |
Intel® Total Memory Encryption – Multi Key | Yes |
Intel® AES New Instructions | Yes |
Secure Key | Yes |
Intel® Trusted Execution Technology | Yes |
Execute Disable Bit | Yes |
Intel® OS Guard | Yes |
Intel® Boot Guard | Yes |
Mode-based Execute Control (MBEC) | Yes |
Intel® Stable IT Platform Program (SIPP) | Yes |
Intel® Virtualization Technology with Redirect Protection (VT-rp) | Yes |
Intel® Virtualization Technology (VT-x) | Yes |
Intel® Virtualization Technology for Directed I/O (VT-d) | Yes |
Intel® VT-x with Extended Page Tables (EPT) | Yes |
Warranty | 3 Years |
