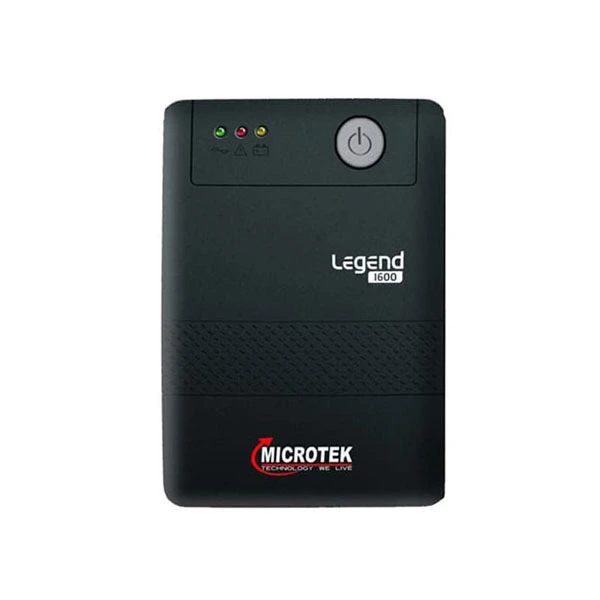

Microtek Legend 1600VA UPS

Technical Details

• Top Grade Micro Processor based Line Interactive UPS – Optimum Reliability.

• Boost and Buck AVR – Ultimate Voltage Stabilization.

• Protection against Overload, Discharge/ Overcharge.

• Wide INPUT Range 140V 300VAC.

• Auto Restart while AC is recovering.

Legend 1600 is a Micro processer Based Line Interactive UPS That Gives Optimum Reliability. It has Boost and Buck AVR for Ultimate Voltage Stabilization Which ensure Protection against Overload, Discharge and Overcharge. Microtek Line Interactive UPS is your ideal choice to provide ultimate protection for Computers.

Capacity: 1600VA/960W

INPUT

• Input Voltage Range : 140 V ~ 300 VAC

• Frequency : 50 Hz ± 10%

OUTPUT

• Output Voltage : 230 VAC Nominal

• Transfer Time : Typical 4~8ms

• Waveform (Battery Mode) : Modified Sine Wave

BATTERY

• Type : Sealed Maintenance Free

• Charging Time : 6~8 Hours recover to 90% capacity

• Battery Rating : SMF 12V /9AH x 2 Battery

ENVIRONMENT

• Operating Temperature : 0°C-40°C;

• Relative Humidity : 0 to 95% Non

• -Condensing

• Noise Level : < 45dB

Warranty: 2 Years On UPS Electronics, 1 Year On Battery
