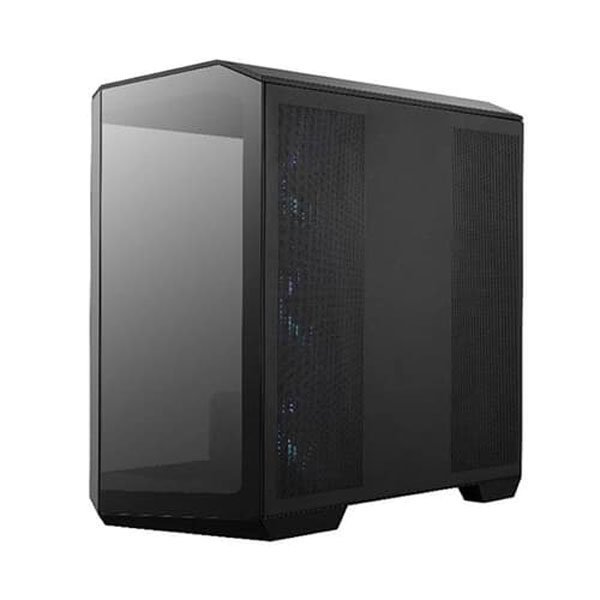

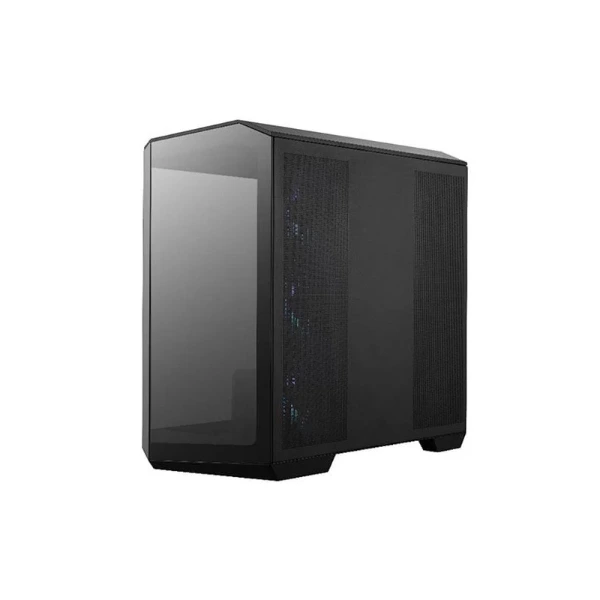

| Model | MAG-PANO-M100R-PZ |
| Color | Black |
| Case Form Factor | Micro- ATX Tower |
| Motherboard Form Factor Support | M-ATX(Back-connect supported) / ITX |
| I/O Ports | - 1 x USB 3.2 Gen 1 Type-A
- 1 x USB 3.2 Gen 2×2 Type-C
- 1 x Audio-Out / Mic-in
- 1 x LED Switch Button
- 1 x Power Button
|
| Drive Mount Support | - 1 x 2.5”
- 1 x 2.5”/3.5” combo
(up to 2 x 2.5” or 1 x 2.5”+ 1 x 3.5”) |
| Expansion Slots | 5 |
| Maximum GPU Length | 390 mm / 15.35 inches
*Support horizontal installation only |
| Maximum CPU Cooler Height | 175 mm / 6.9 inches |
| Power Supply Support | ATX |
| Maximum PSU Length | 200 mm / 7.87 inches |
| Fan Size Support | - Top: 3 x 120 mm / 2 x 140 mm
- Front: NA
- Rear: 1 x 120 mm / 1 x 140 mm
- Side: 3 x 120 mm
- Bottom: 1 x 120 mm
- PSU Shroud: 2 x 120 mm
|

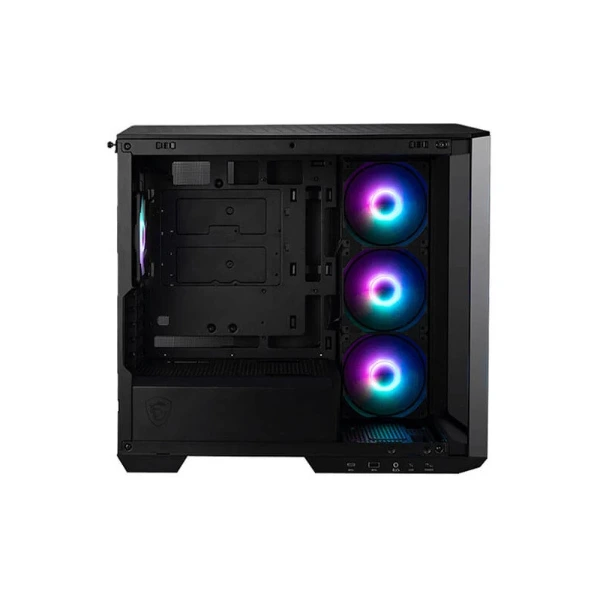

| Pre-installed Fan Size | - Side: 3 x 120 mm
- Rear: 1 x 120 mm
|
| Pre-installed Fan Type | - Side: 3 x ARGB Fan (Reverse-blade)
- Rear: 1 x ARGB Fan
|
| Radiator Size Support | - Top: 120 / 240 / 360 mm
- Front: NA
- Rear: 120 / 140 mm
- Side: NA
- Bottom: NA
|
| Dimensions (DxWxH) | 440 x 235 x 405 mm / 17.32 x 9.25 x 15.94 inches |
| Connection | - 1x USB 3.2 Gen 2×2 Type-C
- 1x USB 3.2 Gen 1 Type-A
- Mic In/ Audio Out
- LED Switch Button
- Power Button
|
| Cooling Warranty | 1 Year |
