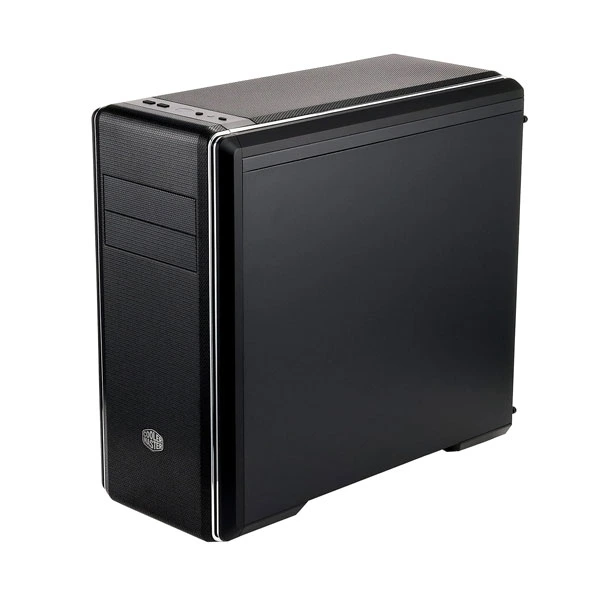

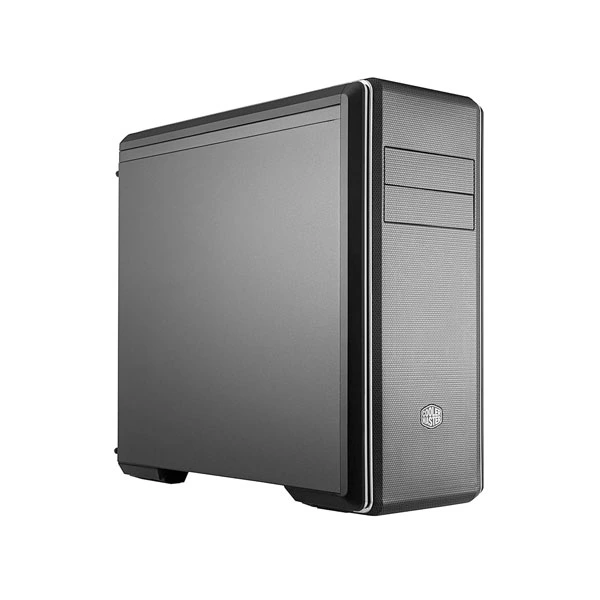

Cooler Master MasterBox CM694 E-ATX Mid Tower Cabinet

Curved Mesh

The top and front panel are entirely mesh, featuring the iconic CM690 curve and Cooler Master's signature rhombus pattern. The fine mesh on the CM694 achieves optimal airflow while also filtering out dust with a single layer.

Modular Drive Cages

3 Drive Cages can be individually added, removed, or repositioned to make room for longer graphics cards and/or top & front radiators.

Rich Connectivity (I/O Panel)

The dust-proof I/O Panel features rubber shields, 2 x USB 3.0 ports, a USB 3.1 (Gen 2) Type-C port, and a 4 pole headset jack.

Cooling Support

Radiators

• Top: 120 / 140 / 240 / 280 / 360mm

(mount fans above bracket for maximum compatibility)

• Front: 120* / 140* / 240* / 280** / 360mm*

remove 2 out of 3 drive cage
*remove 2 out of 3 drive cages & ODD

• Rear: 120mm

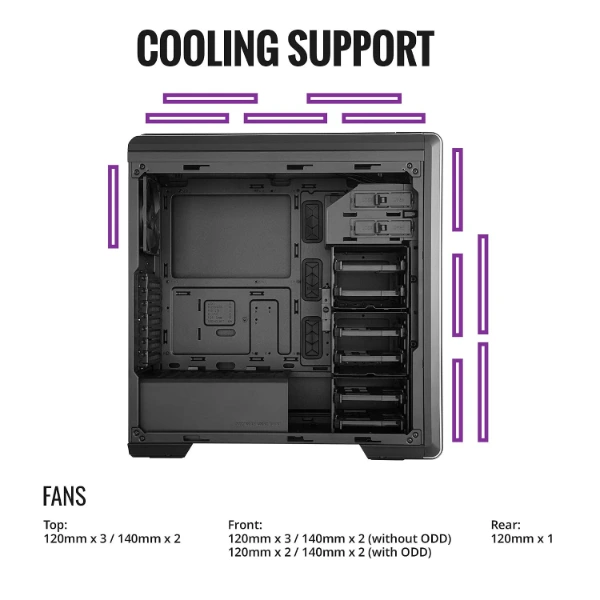

Cooling Support

Fans

• Top: 120mm x 3 / 140mm x 2

• Front:120mm x 3 / 140mm x 2 (without ODD)
  120mm x 2 / 140mm x 2 (with ODD)

• Rear: 120mm x 1

Motherboard Support

Mini-ITX
Micro-ATX
ATX
E-ATX *

*E-ATX up to 12" x 10.7" impacts cable management options

Massive Storage Support

Simultaneous support for 6 x 3.5” HDDs
and 8 x 2.5” SSDs ensure substantial
storage capabilities.
