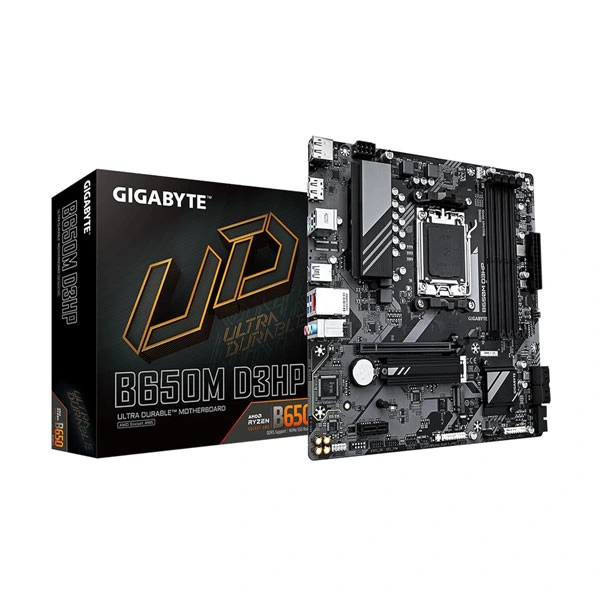

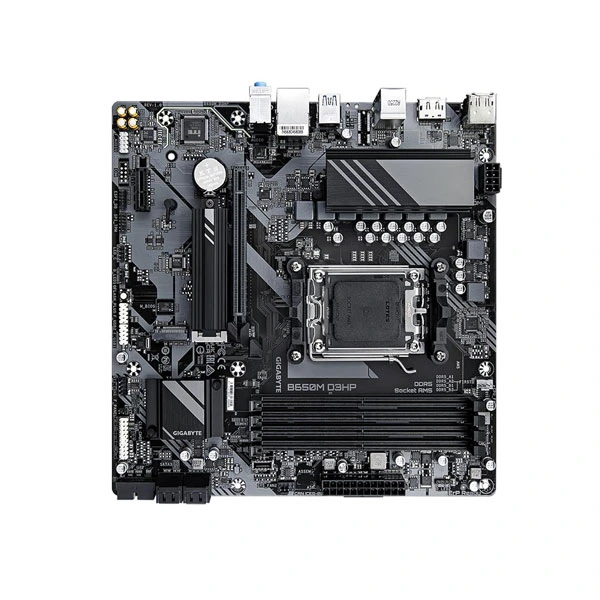

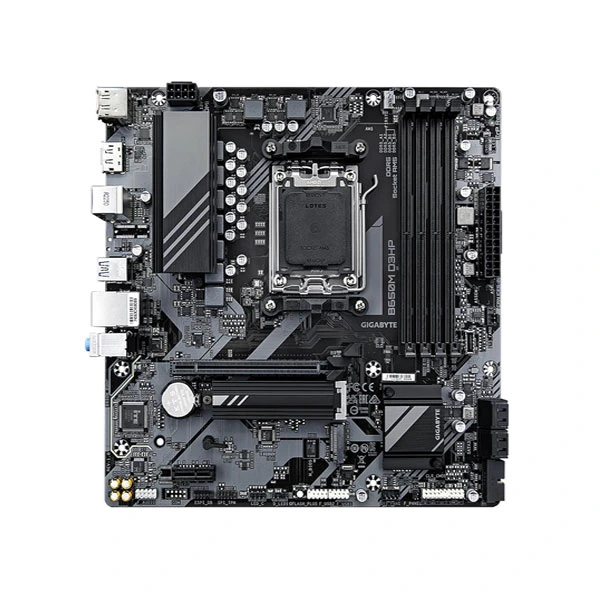

Gigabyte B650M D3HP M-ATX 2X PCIe 4.0 M.2 PCIe 4.0 USB 3.2 Gen2 Type-C 2.5GbE LAN Motherboard

Sale Price
₹10,490
-39%Off

M.R.P.: ₹17,200

Inclusive of all taxesEMI starts at ₹369. Easy EMI available EMI options
Brand:Gigabyte
EAN/GTIN:4719331857851
UPC:889523039083
SKU:B650M-D3HP
UPI Offer

OFFERS

Check offers according to your payment options & save more

100% Secured by
FAQs
Top Brand
1 Year Warranty
Free Delivery
Secure transaction
Sale Price
₹10,490
-39%Off

M.R.P.: ₹17,200

In stock

FREE scheduled delivery: Wednesday 2 September - Tuesday 8 September, 7 am - 9 pm.

Check Delivery Availability

Price

₹10,490

Product Description

  • AMD Socket AM5：Supports AMD Ryzen™ 7000 Series Processors

  • Unparalleled Performance：5+2+2 Phases Digital VRM Solution

  • Dual Channel DDR5：4*SMD DIMMs with AMD EXPO™ & Intel® XMP Memory Module Support

  • SuperSpeed Storage：PCIe 4.0 x4 M.2 Connector

  • EZ-Latch：PCIe x16 Slot with Quick Release Design

  • Fast Networks：2.5GbE LAN

  • Extended Connectivity：2*DP, HDMI

  • Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP

  • Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card

Technical Details

BrandGIGABYTE
ModelB650M D3HP Supported CPU
CPU Socket TypeAM5
CPU TypeRyzen 7000 Series Chipsets
ChipsetAMD B650 Memory
Number of Memory Slots4x288pin (DDR5)
Memory StandardSupport for DDR5 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800 MT/s memory modules
Maximum Memory Supported192GB
Channel SupportedDual Channel
ECC SupportedNon-ECC
Buffer SupportedUn-buffered
Memory Feature4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD Extended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to “Memory Support List” on GIGABYTE’s website for more information.) Expansion Slots
PCI Express 4.0 x16CPU: – 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
PCI Express x1Chipset: – 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 Storage Devices
SATA 6Gb/s4 x SATA 6Gb/s
M.2Integrated in the CPU: – 1 x M.2 connector (Socket 3, M key, type 2580 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: – 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2C_SB)
SATA RAIDRAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, and RAID 10 support for SATA storage devices Onboard Audio
Audio ChipsetRealtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Audio Channels7.1 Channels Onboard LAN
LAN ChipsetRealtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Max LAN Speed2.5Gbps Rear Panel Ports

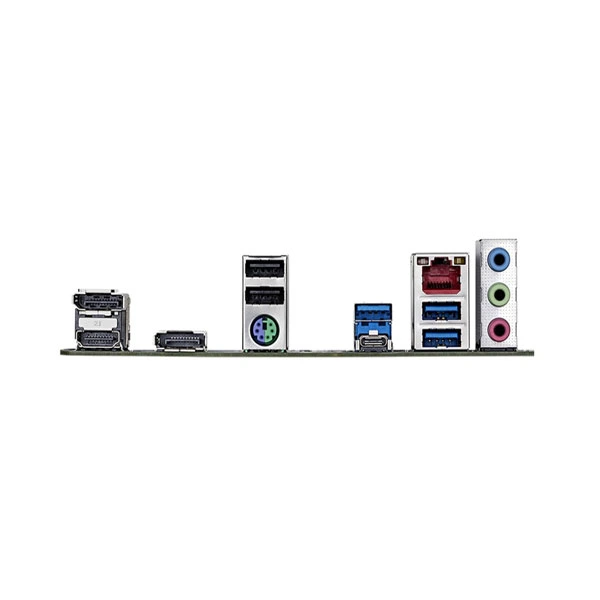

Back I/O Ports1 x PS/2 keyboard/mouse port 1 x USB Type-C port, with USB 3.2 Gen 1 support 3 x USB 3.2 Gen 1 ports 2 x USB 2.0/1.1 ports 1 x HDMI port 2 x DisplayPorts 1 x RJ-45 port 3 x audio jacks Internal I/O Connectors
Onboard USB1 x USB Type-C header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers
Other Connectors1 x CPU fan header 2 x system fan headers 2 x addressable LED strip headers 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper Physical Spec
Form FactorMicro ATX
Dimensions (W x L)9.6″ x 9.6″
Power Pin1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector Windows 11 Compatibility
Windows 11Supported Features
FeaturesSupport for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus
