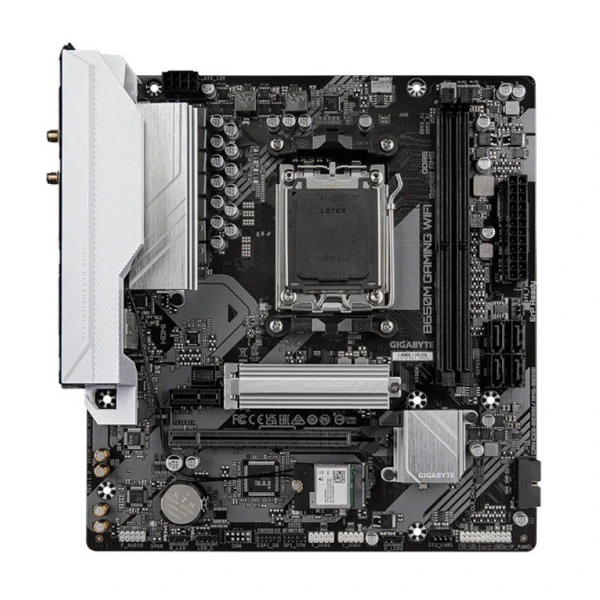

Gigabyte B650M Gaming WIFI M-ATX Supports AMD Ryzen 7000 Series Processors, AM5 Motherboard

Sale Price
₹9,699
-44%Off

M.R.P.: ₹17,200

Inclusive of all taxesEMI starts at ₹341. Easy EMI available EMI options
Brand:Gigabyte
Warranty:3-Years
EAN/GTIN:4719331857936
UPC:889523039380
SKU:B650M-GAMING-WI-FI
UPI Offer

OFFERS

Check offers according to your payment options & save more

100% Secured by
FAQs
Top Brand
3-Years
Free Delivery
Secure transaction
Sale Price
₹9,699
-44%Off

M.R.P.: ₹17,200

In stock

FREE scheduled delivery: Wednesday 2 September - Tuesday 8 September, 7 am - 9 pm.

Check Delivery Availability

Price

₹9,699

Product Description

  • AMD Socket AM5: Supports AMD Ryzen 7000 / Ryzen 8000 / Ryzen 9000 Series Processors

  • Unparalleled Performance: 5+2+2 Phases Digital VRM Solution

  • Dual Channel DDR5: 2*SMD DIMMs with AMD EXPO™ & Intel XMP Memory Module Support

  • SuperSpeed Storage: PCIe 4.0 x4 M.2 Connector

  • EZ-Latch: PCIe x16 Slot with Quick Release Design

  • Fast Networks: 2.5GbE LAN & 802.11ac Wi-Fi

  • Extended Connectivity: HDMI, D-sub

  • Smart Fan 6: Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP

  • Q-Flash Plus: Update BIOS Without Installing the CPU, Memory and Graphics Card

Technical Details

Model NumberB650M GAMING WIFI
CPUAMD Socket AM5, support for: AMD Ryzen™ 7000 Series Processors (Go to GIGABYTE‘s website for the latest CPU support list.)
ChipsetAMD B650
MemorySupport for DDR5 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules 2 x DDR5 DIMM sockets supporting up to 96 GB (48 GB single DIMM capacity) of system memory Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to “Memory Support List” on GIGABYTE’s website for more information.)
Onboard GraphicsIntegrated Graphics Processor with AMD Radeon™ Graphics support: – 1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz – 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support for native HDMI 2.1 TMDS compatible ports. (Graphics specifications may vary depending on CPU support.)
AudioRealtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
LANRealtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication moduleAzureWave Wi-Fi AW-CB304NF (Realtek® RTL8821CE) – WIFI 802.11 a, b, g, n, ac, supporting 2.4/5 GHz Dual-Band – BLUETOOTH 4.2 – Support for 11ac wireless standard (Actual data rate may vary depending on environment and equipment.)
Expansion SlotsCPU: – 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 Chipset: – 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
Storage InterfaceCPU: – 1 x M.2 connector (Socket 3, M key, type 2580 PCIe 4.0 x4/x2 SSD support) Chipset: – 4 x SATA 6Gb/s connectors RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, and RAID 10 support for SATA storage devices
USBCPU: – 2 x USB 3.2 Gen 1 ports on the back panel – 1 x USB 2.0/1.1 port on the back panel Chipset: – 2 x USB 3.2 Gen 1 ports available through the internal USB header – 5 x USB 2.0/1.1 ports (3 ports on the back panel, 2 ports available through the internal USB header) Chipset+USB 2.0 Hub: – 2 x USB 2.0/1.1 ports available through the internal USB header
Internal I/O Connectors1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 2 x addressable LED strip headers 1 x RGB LED strip header 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/ GC-TPM2.0 SPI V2 module only) 1 x Clear CMOS jumper

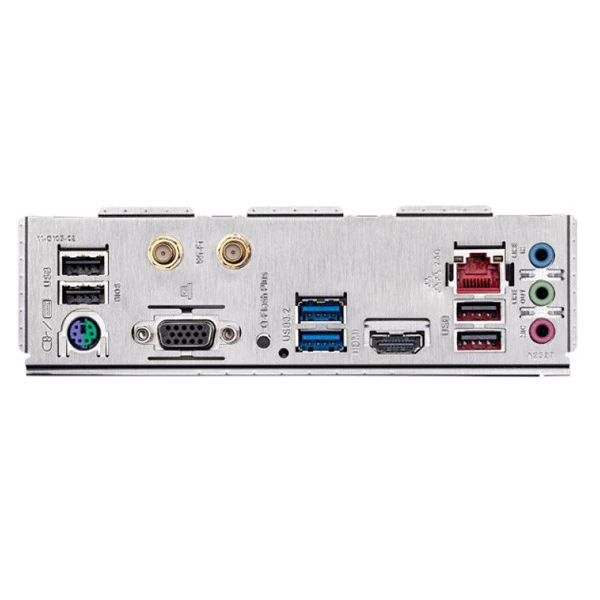

Back Panel Connectors4 x USB 2.0/1.1 ports 1 x PS/2 keyboard/mouse port 1 x D-Sub port 1 x Q-Flash Plus button 2 x USB 3.2 Gen 1 ports 1 x HDMI port 1 x RJ-45 port Š 3 x audio jacks
I/O ControlleriTE® I/O Controller Chip
H/W MonitoringVoltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control
BIOS1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique FeaturesSupport for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus
Bundled SoftwareNorton® Internet Security (OEM version) LAN bandwidth management software
Operating SystemSupport for Windows 11 64-bit Support for Windows 10 64-bit
Form FactorMicro ATX Form Factor; 24.0cm x 22.5cm
Warranty3 Years
