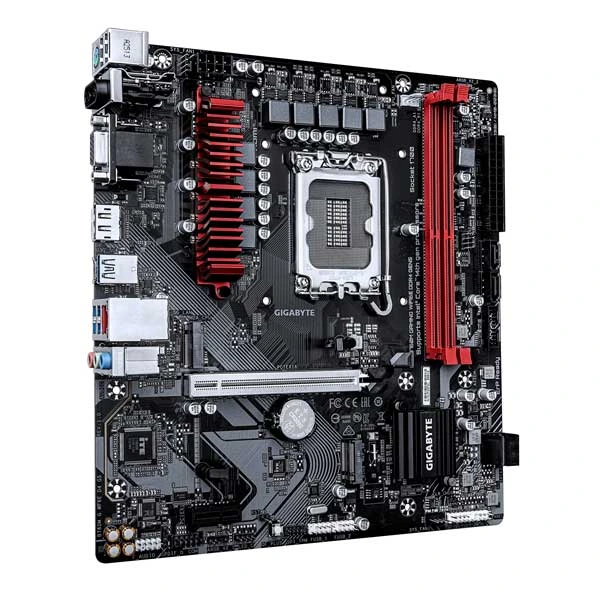

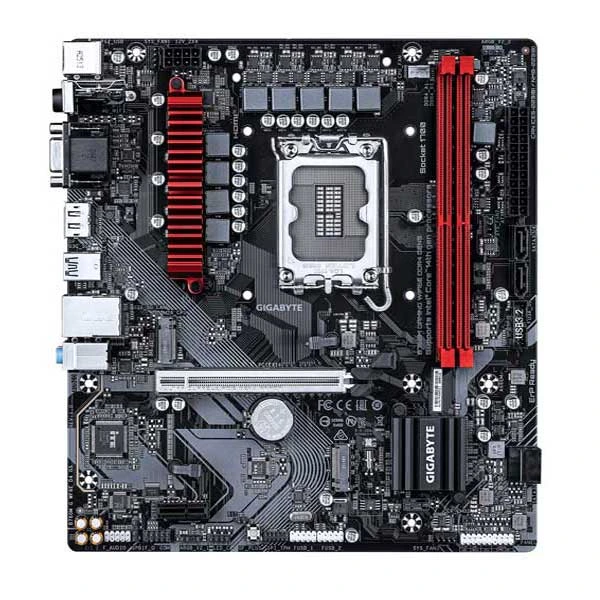

Gigabyte B760M Gaming WIFI6E DDR4 Gen5 M-ATX Motherboard

Sale Price
₹11,987
-39%Off

M.R.P.: ₹19,500

Inclusive of all taxesEasy EMI available EMI options
Check Delivery Availability
Out of Stock for Single Buy

Available only as part of a Combo Deal. See the Special Combo Deal section below to buy!

Brand:Gigabyte
Warranty:3-Year
EAN/GTIN:4719331883058
UPC:88952306292
SKU:B760M-G-WF6E-D4-GEN5
UPI Offer Banner 1

OFFERS

Check offers according to your payment options & save more

100% Secured by
FAQs
Top Brand
3-Year
Free Delivery
Secure transaction

Product Description

  • PCIe Gen5 Performance: Perfect Sync to Win

  • Supports Intel® Core™ 14th/ 13th /12th processors

  • WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation

  • WIFI Compass: Auto detects the best antenna position for strongest Wi-Fi signal.

  • EZ-Latch: PCIe 5.0x16 Slot with Quick Release Design

  • Ultra Durable™ SMD PCIe 5.0 Armor for enhanced graphics card support

  • Unparalleled Performance: Hybrid 6+2+1 Phases VRM Solution

  • Dual Channel DDR4: 2*DIMMs XMP Memory Module Support

  • Fast Networks: 2.5GbE LAN & Wi-Fi 6E

  • Next Generation Storage: 2*PCIe 4.0 x4 M.2 Connectors

  • Extended Connectivity: Rear USB-C® 5Gb/s, DP, HDMI, D-Sub

  • Smart Fan 6: Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP

  • Q-Flash Plus: Update BIOS Without Installing the CPU, Memory and Graphics Card

Technical Details

CPULGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors (Go to GIGABYTE's website for the latest CPU support list.) L3 cache varies with CPU
ChipsetIntel® B760 Express Chipset
MemorySupport for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Onboard GraphicsIntegrated Graphics Processor-Intel® HD Graphics support: - 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. - 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz (Graphics specifications may vary depending on CPU support.) Support for up to triple-display at the same time
AudioRealtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out
LANRealtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication moduleMediaTek Wi-Fi 6E MT7902 - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.3 - Support for 11ax 160MHz wireless standard (Actual data rate may vary depending on environment and equipment.) * Bluetooth version may change with updates. See the Wi-Fi chip vendor’s website for details.
Expansion SlotsCPU: - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 Chipset: - 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
Storage InterfaceCPU: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) - 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
USBChipset: - 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support - 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) - 2 x USB 2.0/1.1 ports on the back panel Chipset+USB 2.0 Hub: - 4 x USB 2.0/1.1 ports available through the internal USB headers
Internal I/O Connectors1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 2 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only) 1 x serial port header 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper

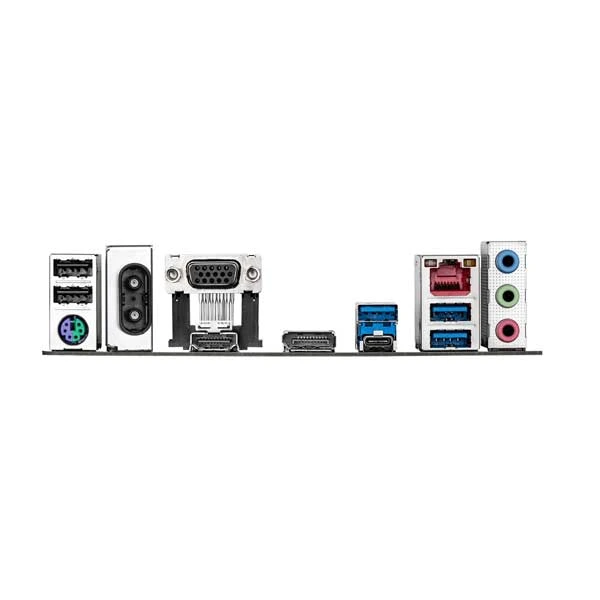

Back Panel Connectors2 x USB 2.0/1.1 ports 1 x PS/2 keyboard/mouse port 2 x antenna connectors (1T1R) 1 x D-Sub port (Note) 1 x HDMI port (Note) 1 x DisplayPort (Note) 3 x USB 3.2 Gen 1 ports 1 x USB Type-C® port, with USB 3.2 Gen 1 support 1 x RJ-45 port 3 x audio jacks (Note) Actual support may vary by CPU.
I/O ControlleriTE® I/O Controller Chip
H/W MonitoringVoltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control
BIOS1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique FeaturesSupport for GIGABYTE Control Center (GCC) specifications. Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup
Bundle SoftwareNorton® Internet Security (OEM version)
Operating SystemSupport for Windows 11 64-bit Support for Windows 10 64-bit
Form FactorMicro ATX Form Factor; 24.4cm x 22.5cm
Warranty3 Year
