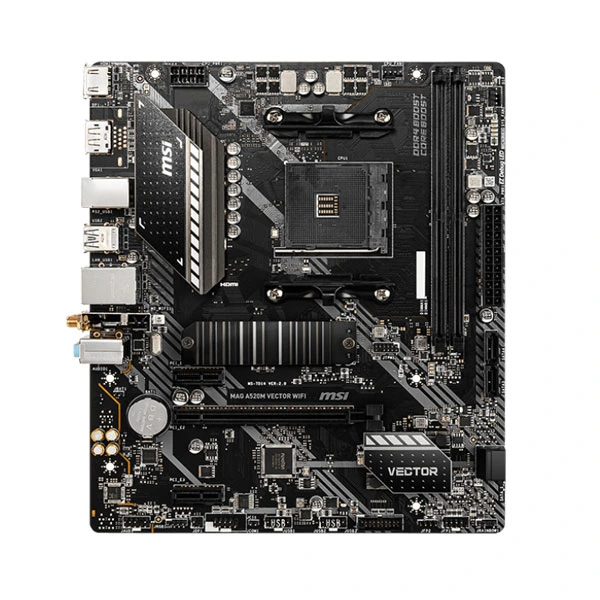

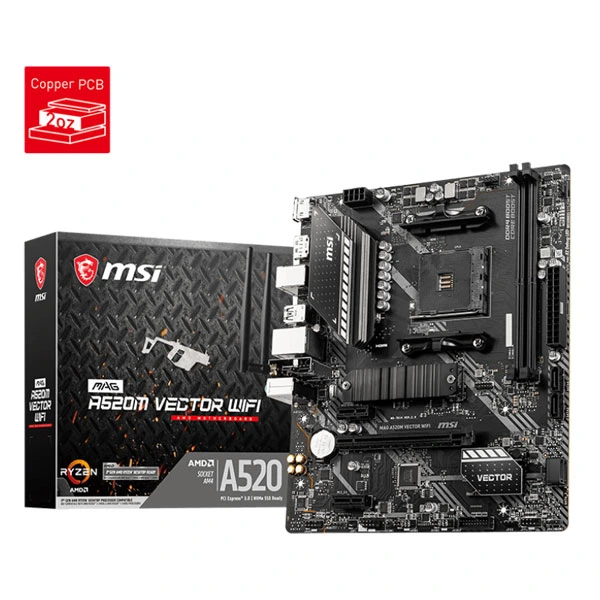

MSI MAG A520M VECTOR WIFI DDR4 GAMING MOTHERBOARD

Supported Socket – AM4
Socket For – AMD
Chipset – AMD 520
Cpu support- 3200g, 3400g

Sale Price
₹7,420
-38%Off

M.R.P.: ₹11,999

Inclusive of all taxesEMI starts at ₹261. Easy EMI available EMI options
Brand:MSI
EAN/GTIN:4719072752583
UPC:824142225226
SKU:11999
UPI Offer

OFFERS

Check offers according to your payment options & save more

100% Secured by
FAQs
Top Brand
1 Year Warranty
Free Delivery
Secure transaction
Sale Price
₹7,420
-38%Off

M.R.P.: ₹11,999

In stock

FREE scheduled delivery: Saturday 12 September - Friday 18 September, 7 am - 9 pm.

Check Delivery Availability

Price

₹7,420

Product Description

  • Supports AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series and 3000 G-Series processors

  • Supports DDR4 Memory, up to 4600(OC) MHz

  • Extended Heatsink Design: Leading heatsink design, extended for maximum cooling and performance

  • Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs

  • M.2 Shield Frozr: Strengthened built-in M.2 thermal solution. Keeps M.2 SSDs safe while preventing throttling, making them run faster

  • Core Boost: With premium layout and digital power design to support more cores and provide better performance

  • 2oz Thickened Copper PCB: An enhanced PCB design improves heat dissipation and performance reliability

  • Audio Boost: Reward your ears with studio grade sound quality

  • Dragon Center: A brand new software which integrates all MSI ( A520M VECTOR WIFI DDR4) exclusive tools with user friendly user interface

Technical Details

PlatformAMD
SocketAM4
Cpu TypeRyzen 5000, Ryzen 5000-G, Ryzen 4000, Ryzen 4000-G, Ryzen 3000, Ryzen 3000-G
ChipsetA520
Memory Speedup to 4600+
Max Memory Support64 GB
Supported Memory TypeDDR4
Channel SupportedDual Channel
Memory FeatureSupports non-ECC UDIMM memory Supports ECC UDIMM memory (non-ECC mode) Supports un-buffered memory
Graphics Port1 x HDMI 2.1, 1x DisplayPort 1.4
Expansion Slots1x PCIe 3.0 x16 slot (From AMD processor) Supports x16 speed with Ryzen 5000, 5000G, 4000G and 3000 processors Supports x8 speed with Ryzen 3000G processors Supports x4 speed with AMD Athlon with Radeon Graphics processors 2x PCIe 3.0x1 slots
Wireless NetworkingWIFI 5

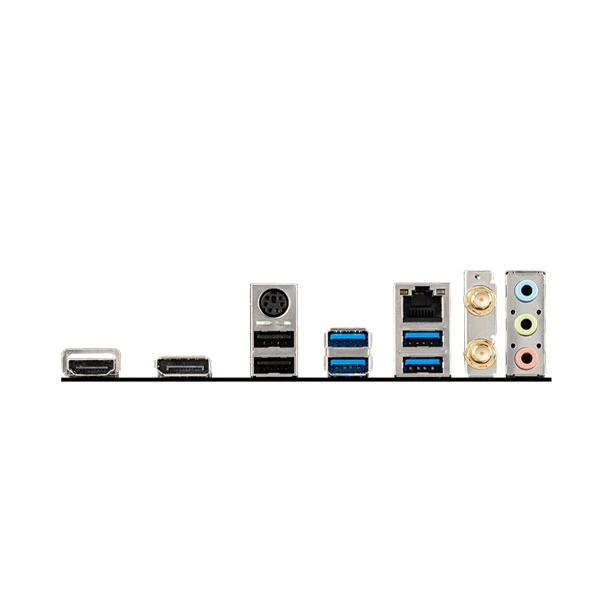

Back Panel I/O PortsKeyboard / Mouse LAN port Wi-Fi Antenna connectors Audio Connectors HDMI DisplayPort USB 2.0 Ports USB 3.2 Gen 1 5Gbps Type-A USB 3.2 Gen 1 5Gbps Type-A
Internal I/O Connector1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 4x SATA 6Gb/s connectors 1x Serial port connector 1x M.2 slot (M-Key) 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin system fan connector 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x 4-pin RGB LED connector 1x 3-pin RAINBOW LED connector 1x TPM module connector 1x Clear CMOS jumper
Form FactorMicro-ATX
Warranty3 Years
