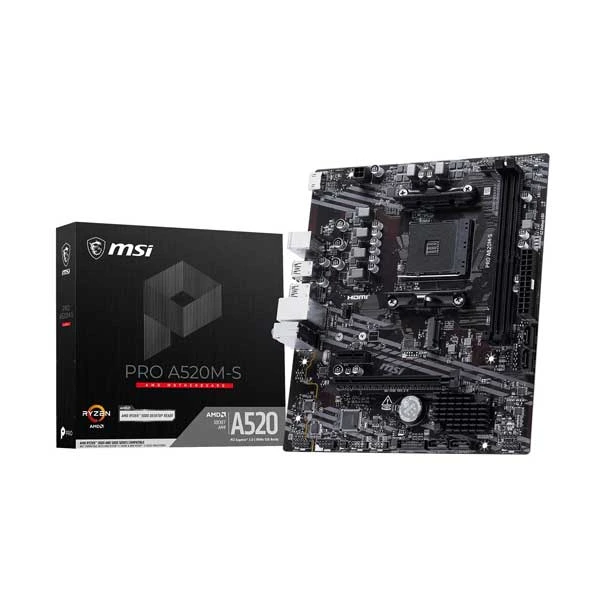

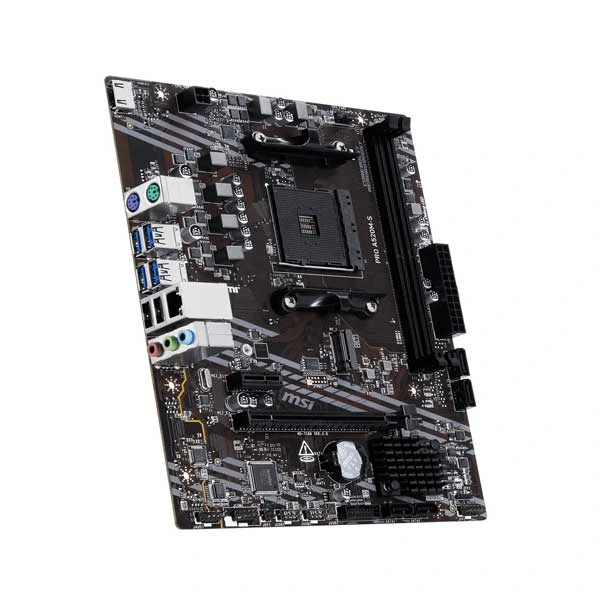

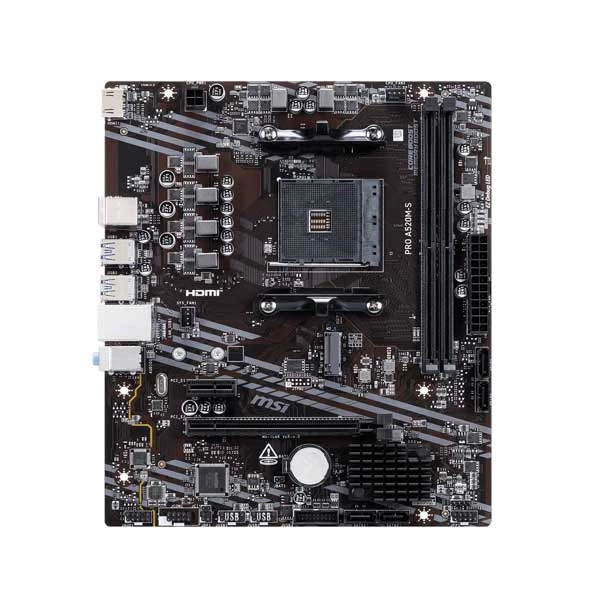

MSI PRO A520M-S M-ATX DDR4 Motherboard

Sale Price
₹5,165
-36%Off

M.R.P.: ₹8,099

Inclusive of all taxesEMI starts at ₹181. Easy EMI available EMI options
Brand:MSI
Warranty:3-Year
EAN/GTIN:4711377465847
UPC:82414247664
SKU:PRO-A520M-S
UPI Offer

OFFERS

Check offers according to your payment options & save more

100% Secured by
FAQs
Top Brand
3-Year
Free Delivery
Secure transaction
Sale Price
₹5,165
-36%Off

M.R.P.: ₹8,099

In stock

FREE scheduled delivery: Wednesday 7 October - Tuesday 13 October, 7 am - 9 pm.

Check Delivery Availability

Price

₹5,165

Product Description

  • Supports AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series, and 3000 G-Series processors

  • Supports DDR4 Memory, up to 4400+ MT/s (OC)

  • Turbo M.2: PCIe 3.0 slot and Turbo Gen3 x4 M.2

  • EZ DIY: EZ Debug LED and EZ Mounting

  • Audio Boost: Reward your ears with studio-grade sound quality

  • MSI Center: A brand-new software which integrates all MSI exclusive tools with a user-friendly user interface.

Technical Details

ChipsetAMD A520
CPUSupports AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series and 3000 G-Series desktop processorsSocket AM4
Memory2x DDR4, Maximum Memory Capacity 64GB Memory Support DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400/ 4600+ MHz by A-XMP OC MODE Ryzen™ 5000 Series Processors max. overclocking: • 1DPC 1R Max speed up to 4600+ MT/s • 1DPC 2R Max speed up to 3866+ MT/s Supports JEDEC Speed Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Memory Overclocking by A-XMP OC mode
Onboard Graphics1x HDMI™ Support HDMITM 1.4, maximum resolution of 4K 30Hz*
Slot1x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E2 Gen PCIe 3.0 supports up to x16 (From CPU)
AudioRealtek® ALC897 Codec 7.1-Channel High Definition Audio
Storage1x M.2 M.2_1 Source (From CPU) supports up to PCIe 3.0 x4 / SATA mode, supports 2280/2260 devices4x SATA 6G
RAIDSupports RAID 0, RAID 1, and RAID 10 for SATA storage devices
USB2x USB 2.0 (Rear) 4x USB 2.0 (Front) 4x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front)
LANRealtek® RTL8111H 1Gbps LAN
Internal IO1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 1x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 4x USB 2.0 ports 2x USB 5Gbps Type A ports
LED FEATURE4x EZ Debug LED BACK PANEL PORTS HDMI™ Keyboard / Mouse USB 5Gbps Type-A LAN Port Audio connectors USB 2.0
OPERATING SYSTEMSupport for Windows® 11 64-bit
Warranty3-Year
