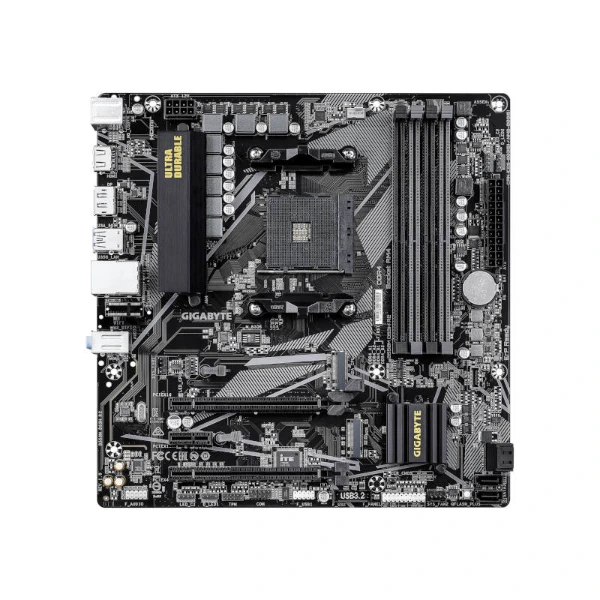

Gigabyte B550M DS3H AC R2 M-ATX Motherboard

• AMD Socket AM4：Supports AMD Ryzen™ 5000 / 4000 / 3000 Series Processors

• Digital 5+3 phases VRM solution

• Dual Channel DDR4：4*DIMMs

• WIFI EZ-Plug：Quick and easy design for Wi-Fi antenna installation

• EZ-Latch：PCIe slots with Quick Release Design

• Ultra-Fast Storage：2*M.2 slots, including PCIe 4.0 x1

• Efficient Thermal：VRM Thermal Armor Advanced

• Fast Networking：GbE LAN & Wi-Fi 5

• Extended Connectivity：HDMI, Displayport

• PCIe UD Slot：PCIe 4.0 x16 slots with 10X strength for graphics card & Better Heat dissipation effect

GIGABYTE B550 motherboards maximize your PC's potential with AMD StoreMI technology. StoreMI accelerates traditional storage devices to reduce boot times and enhance the overall user experience. This easy-to-use utility combines the speed of SSDs with the high capacity of HDDs into a single drive, enhances the read/write speeds of the device to match that of SSDs, bolsters data performance for incredible value, and transforms the everyday PC to a performance driven system.

Faster and Better Coverage with Intel Dual Band 802.11ac WIFI + BT 4.2 Module
The onboard 802.11ac WIFI module from Intel® supports Dual Band and up to 433 Mbps, 3x faster WIFI speed than 802.11n and also support BLUETOOTH 4.2.

Dual NVMe PCIe 4.0/3.0 M.2 Connectors

With NVMe PCIe 4.0/3.0 x4 and PCIe 3.0 x2 M.2 connectors onboard, GIGABYTE Motherboards bring users to experience NVMe mode or SATA mode connectivity for M.2 SSD devices. Delivering up to 64 Gb/s data transfer speed, the dual M.2 connectors design provides an ideal storage solution while also supporting in RAID modes.

Realtek GbE LAN with Bandwidth Management

Realtek Gigabit LAN features a network bandwidth management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments.

RGB FUSION 2.0

With B550 Motherboards, RGB Fusion 2.0 is even better with Addressable LEDs. RGB Fusion 2.0 offers users the option to control onboard RGB and external RGB / Addressable LED light strips for their PC build. Already feature filled with colors and patterns, RGB Fusion 2.0 are now upgraded to improve the Addressable LED support. With external Addressable LED strips, where each LED is digitally addressable that users can experience even more patterns, styles, and illuminations.

With B550 Motherboards support the external 5V Addressable LED lighting strips and up to 300 LED lights. RGB Fusion 2.0 with Addressable LEDs comes with new patterns and various speed settings with more to come.
