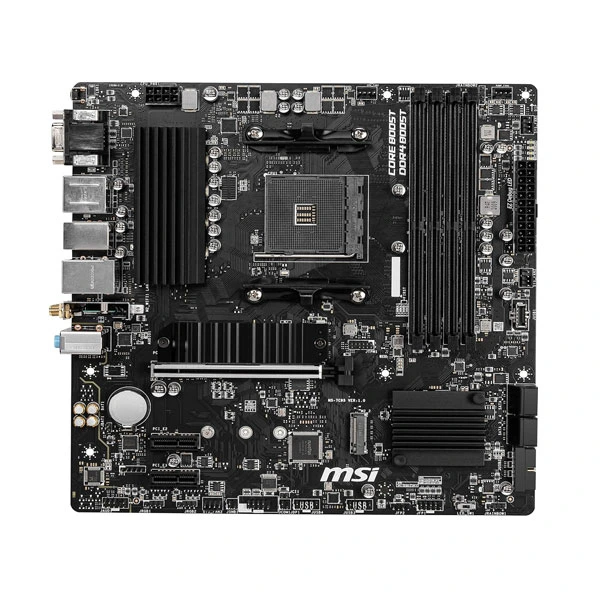

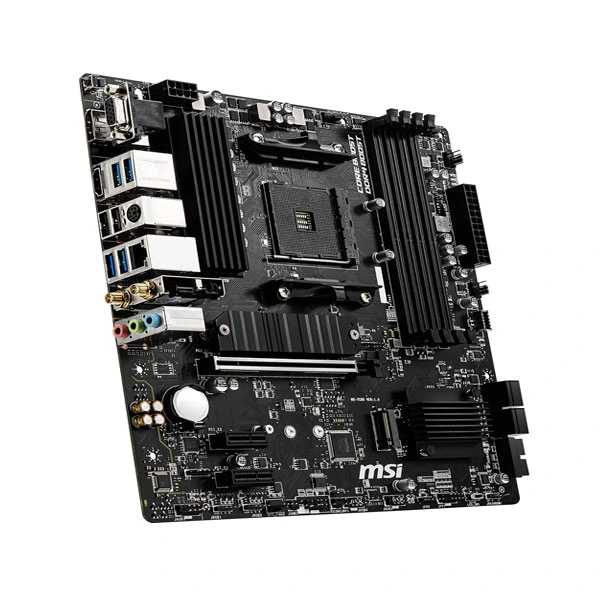

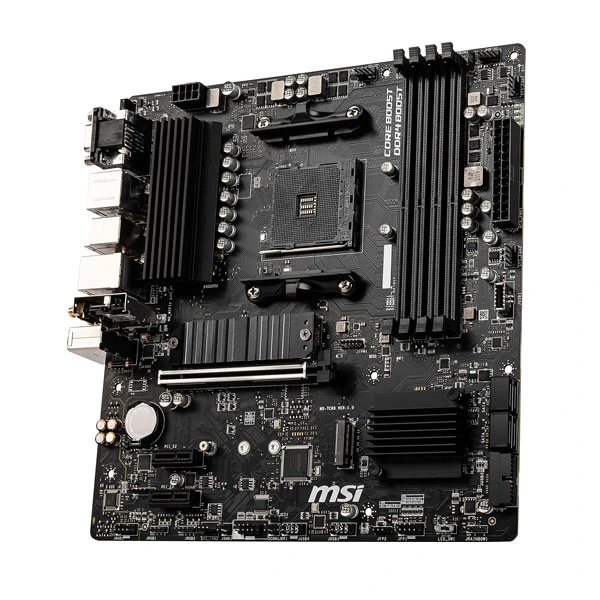

MSI B550M PRO-VDH WIFI Motherboard

Sale Price
₹9,990
-32%Off

M.R.P.: ₹14,700

Inclusive of all taxesEMI starts at ₹351. Easy EMI available EMI options
Brand:MSI
Warranty:3-Years
EAN/GTIN:4719072733698
UPC:824142219393
SKU:B550M-PRO-VDH-WIFI
UPI Offer

OFFERS

Check offers according to your payment options & save more

100% Secured by
FAQs
Top Brand
3-Years
Free Delivery
Secure transaction
Sale Price
₹9,990
-32%Off

M.R.P.: ₹14,700

In stock

FREE scheduled delivery: Thursday 3 September - Wednesday 9 September, 7 am - 9 pm.

Check Delivery Availability

Price

₹9,990

Product Description

  • Supports AMD Ryzen™ 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen™ 5 3400G & Ryzen™ 3 3200G) and AMD Ryzen™ 4000 G-Series desktop processors

  • Supports DDR4 Memory, up to 4400(OC) MHz

  • Lightning Fast Experience: PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr

  • Premium Thermal Solution: 7W/mK pad, additional choke thermal pad and M.2 Shield Frozr are built for high performance system and non-stop works

  • Powerful Design: Core Boost, Digital PWM IC, 2oz Thickened Copper PCB, Creator Genie, DDR4 Boost

  • Audio Boost: Reward your ears with studio grade sound quality

  • Dragon Center: A brand new software which integrates all MSI exclusive tools with user friendly user interface.

Technical Details

CPUSupports AM4 socket 3rd Gen AMD Ryzen™ processors, and future AMD Ryzen™ processors with BIOS update
ChipsetAMD B550 Chipset
Memory4x DDR4 memory slots, support up to 128GB Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400+ MHz by A-XMP OC MODE
Expansion Slots1x PCIe 4.0/ 3.0 x16 slot (PCI_E1) 2x PCIe 3.0 x1 slots The supported specification depends on installed processor.
Onboard Graphics1x VGA port, supports resolution of 2048x1536 @50Hz, 2048x1280 @60Hz, 1920x1200 @60Hz 1x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz 1x HDMI 2.1 port, supports a maximum resolution of 4096x2160 @60Hz Maximum shared memory of 16 GB
StorageAMD B550 Chipset 4x SATA 6Gb/s ports 2x M.2 slots (Key M) M2_1 slot (from AMD Processor)
RAIDSupports RAID 0, RAID 1 and RAID 10 for SATA storage devices Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
USBAMD B550 Chipset 3x USB 3.2 Gen 1 5Gbps ports (1 Type-C internal connector, and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector) 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)AMD Processor 4x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel
AudioRealtek® ALC892 Codec 7.1-Channel High Definition Audio
LAN1x Realtek® 8111HN Gigabit LAN controller
Wireless LAN & BluetoothIntel® Dual Band Wireless-AC 3168 Supports Wi-Fi 802.11 a/b/g/n/ac, dual band (2.4GHz, 5GHz) up to 433 Mbps speed. Supports Dual Mode Bluetooth 2.1,2.1+EDR,3.0,4.0,BLE,4.2
Internal Connectors1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 4x SATA 6Gb/s connectors 2x M.2 slots (M-Key) 1x USB 3.2 Gen 1 5Gbps Type-C port 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 3x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Serial port connector 1x Chassis Intrusion connector 2x 4-pin RGB LED connectors 2x 3-pin RAINBOW LED connectors 1xTPM module connector 1x Clear CMOS jumper

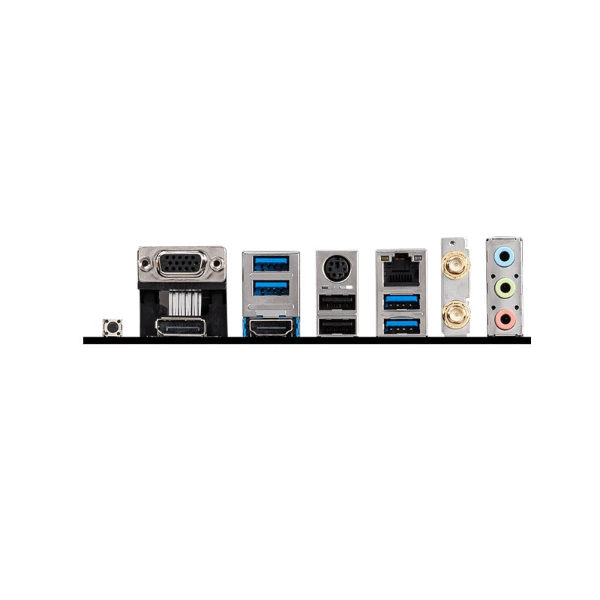

Back Panel PortsVGA,USB 3.2 Gen 1 5Gbps Type-A Keyboard / Mouse LAN,Flash BIOS Button DisplayPort,HDMI USB 2.0,USB 3.2 Gen 1 5Gbps Type-A Wi-Fi Antenna connectors 3x Audio jacks
DimensionsMicro-ATX Form Factor 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)
Mounting8 mounting holes
Warranty3 Years
