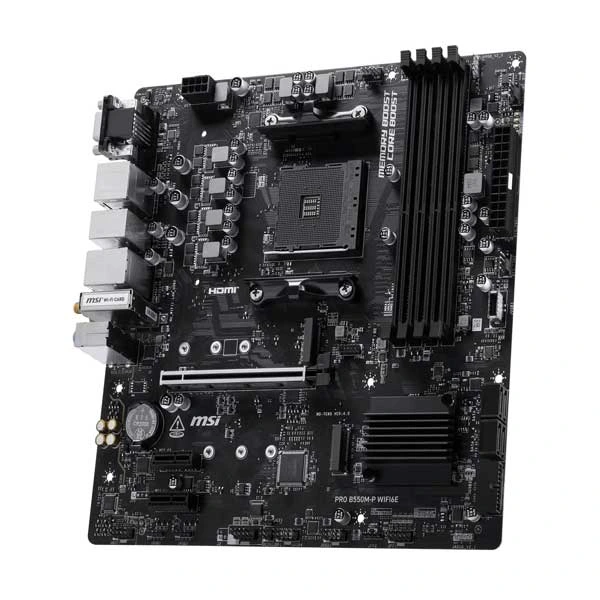

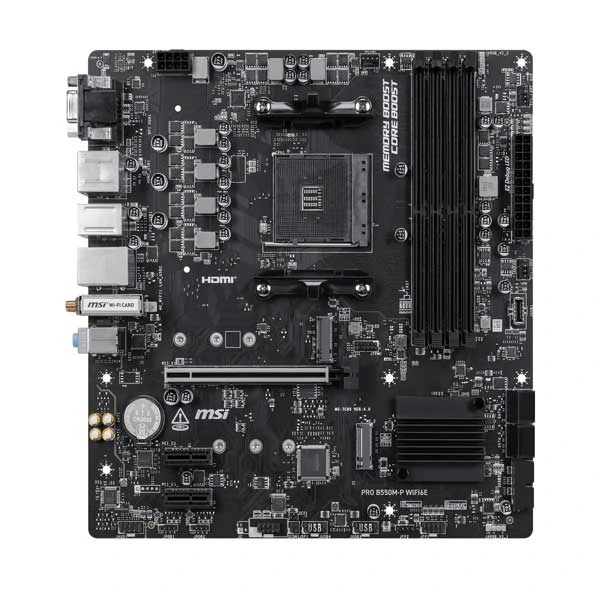

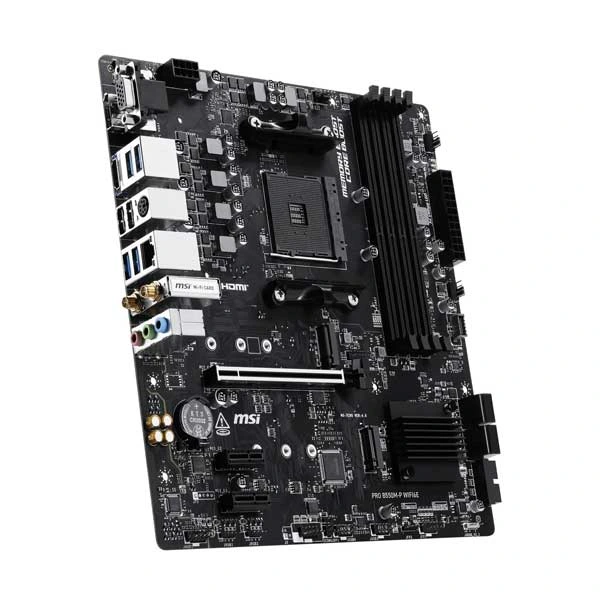

MSI PRO B550M-P WIFI6E Motherboard, mATX - Supports AMD Ryzen 5000/5000 G-Series, 4000 G-Series, 3000/3000 G-Series Desktop Processors, AM4 - DDR4 Memory up to 4400+ MT/s, PCIe&M.2 Gen4

Sale Price
₹9,459
-37%Off

M.R.P.: ₹14,999

Inclusive of all taxesEMI starts at ₹332. Easy EMI available EMI options
Brand:MSI
Warranty:3-Year
EAN/GTIN:4711377453530
SKU:PRO-B550M-P-WIFI6E
UPI Offer

OFFERS

Check offers according to your payment options & save more

100% Secured by
FAQs
Top Brand
3-Year
Free Delivery
Secure transaction
Sale Price
₹9,459
-37%Off

M.R.P.: ₹14,999

In stock

FREE scheduled delivery: Tuesday 29 September - Monday 5 October, 7 am - 9 pm.

Check Delivery Availability

Price

₹9,459

Product Description

MOBO0584 /MSI Mainboard PRO B550M-P WIFI6E (ETA-SD-20220302207)

PRO B550M-P WIFI6E is engineered with PCIe 4.0 M.2, Frozr AI Cooling, Front Type-C, and the Wi-Fi 6E solution, ready for the AMD Ryzen 5000 series processors.

  • Supports AMD Ryzen 5000 Series, 5000 G-Series, 4000 G-Series, and 3000 Series processors

  • Supports DDR4 Memory, up to 4400+ MT/s (OC)

  • Lightning Fast Experience: PCIe 4.0 slot and Lightning Gen4 x4 M.2

  • EZ DIY: EZ Debug LED and EZ Mounting

  • Wi-Fi 6E Solution: the ideal solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission

  • Audio Boost: Reward your ears with studio-grade sound quality

  • MSI Center: A brand-new software which integrates all MSI exclusive tools with user-friendly user interface.

Technical Details

ChipsetAMD B550
CPUSupports AMD Ryzen™ 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen™ 5 3400G & Ryzen™ 3 3200G) and AMD Ryzen™ 4000 G-Series desktop processors Socket AM4
Memory4x DDR4, Maximum Memory Capacity 128GB Memory Support DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133/ 4266/ 4400+ MHz by A-XMP OC MODE Max. overclocking: • 1DPC 1R Max speed up to 4400+ MT/s • 1DPC 2R Max speed up to 3733+ MT/s • 2DPC 1R Max speed up to 3866+ MT/s • 2DPC 2R Max speed up to 3466+ MT/s Supports JEDEC Speed Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Memory Overclocking by A-XMP OC mode
Onboard Graphics1x HDMI™ Support HDMITM 2.1, maximum resolution of 4K 60Hz* 1x DisplayPort Supports DP 1.4, maximum resolution of 4K 60Hz* 1x VGA Support VGA, maximum resolution of 2048x1536 50Hz, 1920x1200 60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slot1x PCI-E x16 slot 2x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset)
AudioRealtek® ALC897 Codec 7.1-Channel High Definition Audio
Storage2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 3.0 x4 , supports 2280/2260/2242 devices 4x SATA 6G
RAIDSupports RAID 0, RAID 1, and RAID 10 for SATA storage devices Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
USB2x USB 2.0 (Rear) 4x USB 2.0 (Front) 4x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) 1x USB 5Gbps Type C (Front)
LANRealtek® RTL8111H 1Gbps LAN
Internal IO1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 2x Addressable V2 RGB LED connector (JARGB_V2) 2x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 5Gbps Type C ports
WIRELESS LAN & BLUETOOTHWi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Dual-band 1T1R mode Supports MU-MIMO RX Supports 2.4GHz/ 5GHz/ 6GHz* frequency band Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.3**

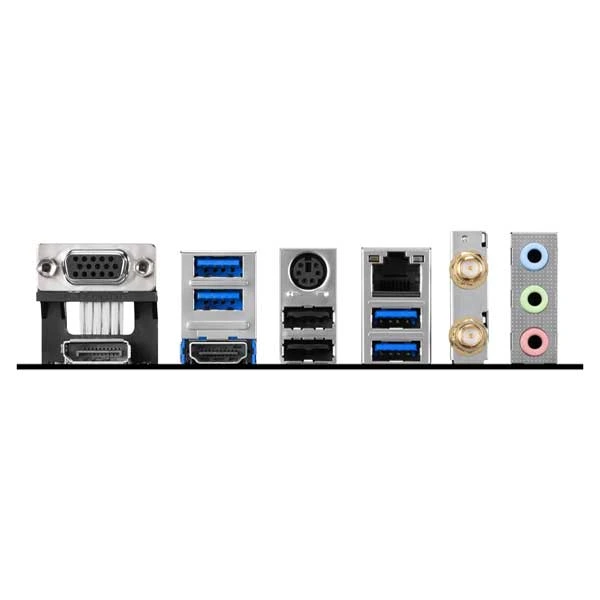

LED FEATURE4x EZ Debug LED BACK PANEL PORTS USB 5Gbps Type-A Keyboard / Mouse LAN Port Wi-Fi / Bluetooth Audio connectors DisplayPort HDMI™ USB 2.0 USB 5Gbps Type-A
OPERATING SYSTEMSupport for Windows® 11 64-bit, Windows® 10 64-bit
PCB InfomATX 243.84mmx243.84mm
Warranty3 -Year
